Injector Dynamics ID1750-XDS Fuel Injectors for Nissan GT-R (R35) (Set of 6)
The Injector Dynamics ID1750-XDS is the current 1750cc-class injector in the ID lineup. This set of six, manufacturer part number 1750.48.14.R35.6, is the configuration Injector Dynamics lists for the Nissan GT-R (R35), supplied with a 14 mm top and R35 lower spacer in Injector Dynamics' application-specific R35 configuration.
Specifications
- Nominal flow rate: 1728 cc/min at 3.0 bar (43.5 psi), rated with E10 emissions certification fuel at 49°C (120°F)
- Maximum differential fuel pressure: 7.0 bar (101.5 psi)

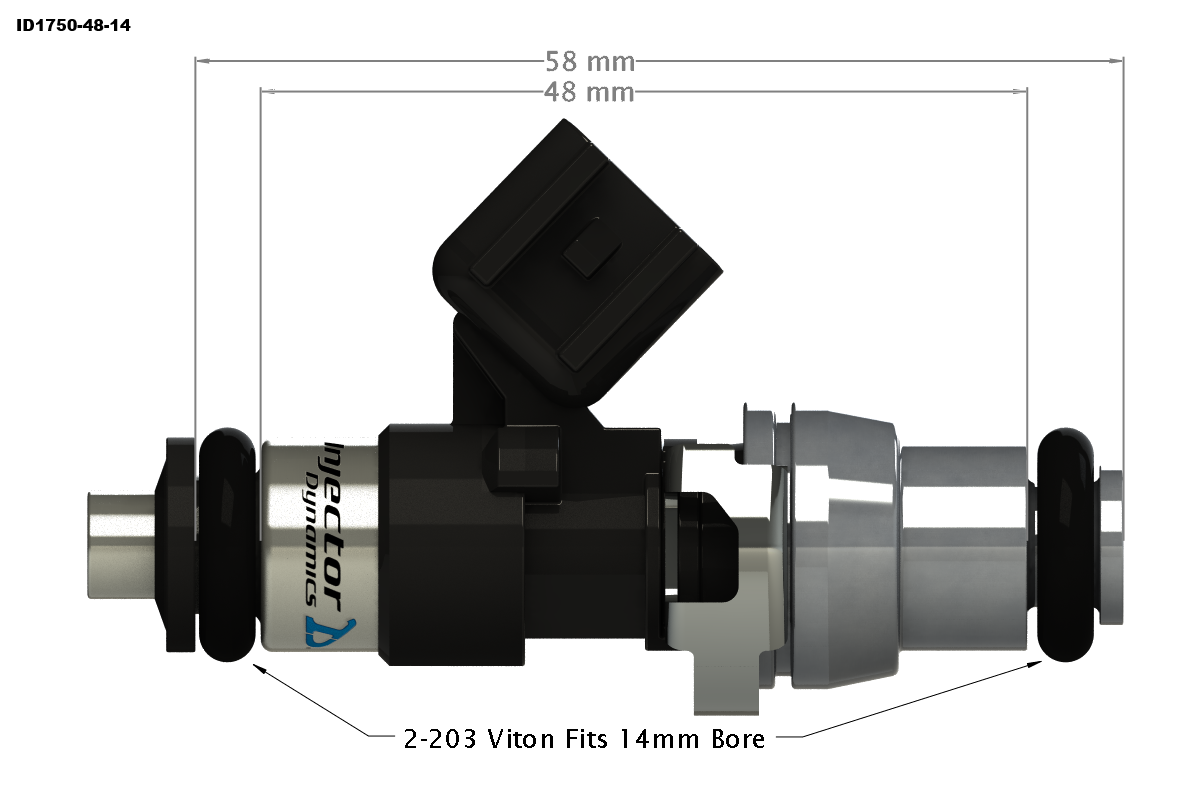

- Body length: 48 mm
- Top: 14 mm
- Lower: 14 mm O-ring with R35 lower spacer
- Injection architecture: port fuel injection (PFI)
- Electrical: high impedance; USCAR connector; new mating connector supplied by Injector Dynamics
- Fuel compatibility per Injector Dynamics: methanol, ethanol, MTBE, nitromethane, and all known hydrocarbon fuels
Fitment
Listed by Injector Dynamics under part number 1750.48.14.R35.6 for the Nissan GT-R (R35). Verify compatibility using manufacturer part number 1750.48.14.R35.6 before ordering.
Quantity
Sold as a set of six (6) injectors.
Installation & Calibration
Professional installation and an application-appropriate ECU calibration using Injector Dynamics characterization data are required.
Check applicable federal, state, and local emissions regulations before installing this part on a street-driven vehicle.
