Custom Automotive Metal Fabrication in Western Pennsylvania
Most fabrication problems are decided before the arc ever starts. Joint design, material preparation, fit-up, and access determine whether a component can be welded correctly. Heat input and weld sequencing determine whether it stays straight. Purge quality determines what the inside of a stainless joint looks like where no one can see it. Grade A Garage builds custom automotive components around those constraints — not around what photographs well.
From our shop in Burgettstown, Pennsylvania, we handle performance and structural fabrication for builders across Pittsburgh, Western Pennsylvania, the Ohio Valley, and the West Virginia Panhandle. The work ranges from turbo manifolds and stainless exhaust systems to chassis repair and restoration metalwork. What it all has in common: components designed for their intended use, built to be serviceable, and welded with the process control the material demands.
TIG welding, fit-up, and process control

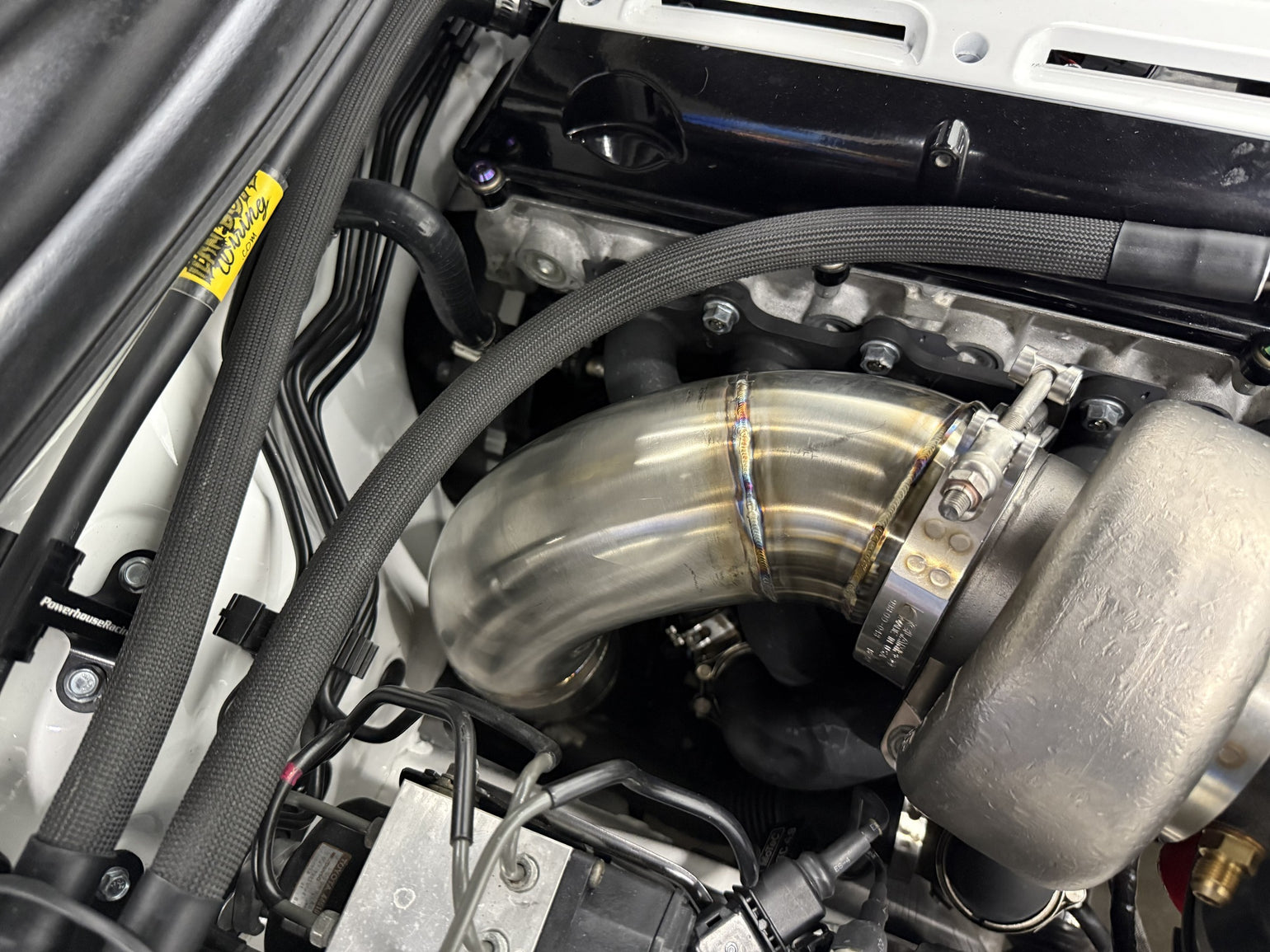

TIG is the core process for our custom performance fabrication because it gives the welder direct control over the two variables that matter most on thin-wall tubing and mixed-thickness joints: heat input and filler addition. That control is what protects a part from the failures that show up months later — cracked joints, warped flanges, contaminated welds. Appearance follows from doing those things correctly, not the other way around.
Fit-up comes first. Gaps bridged with filler metal produce inconsistent penetration, trapped stress, and distortion. We cut, fit, and tack components so the joint is right before it is welded, and we sequence welds to manage heat so flange faces and mounting points end up where the design says they should.

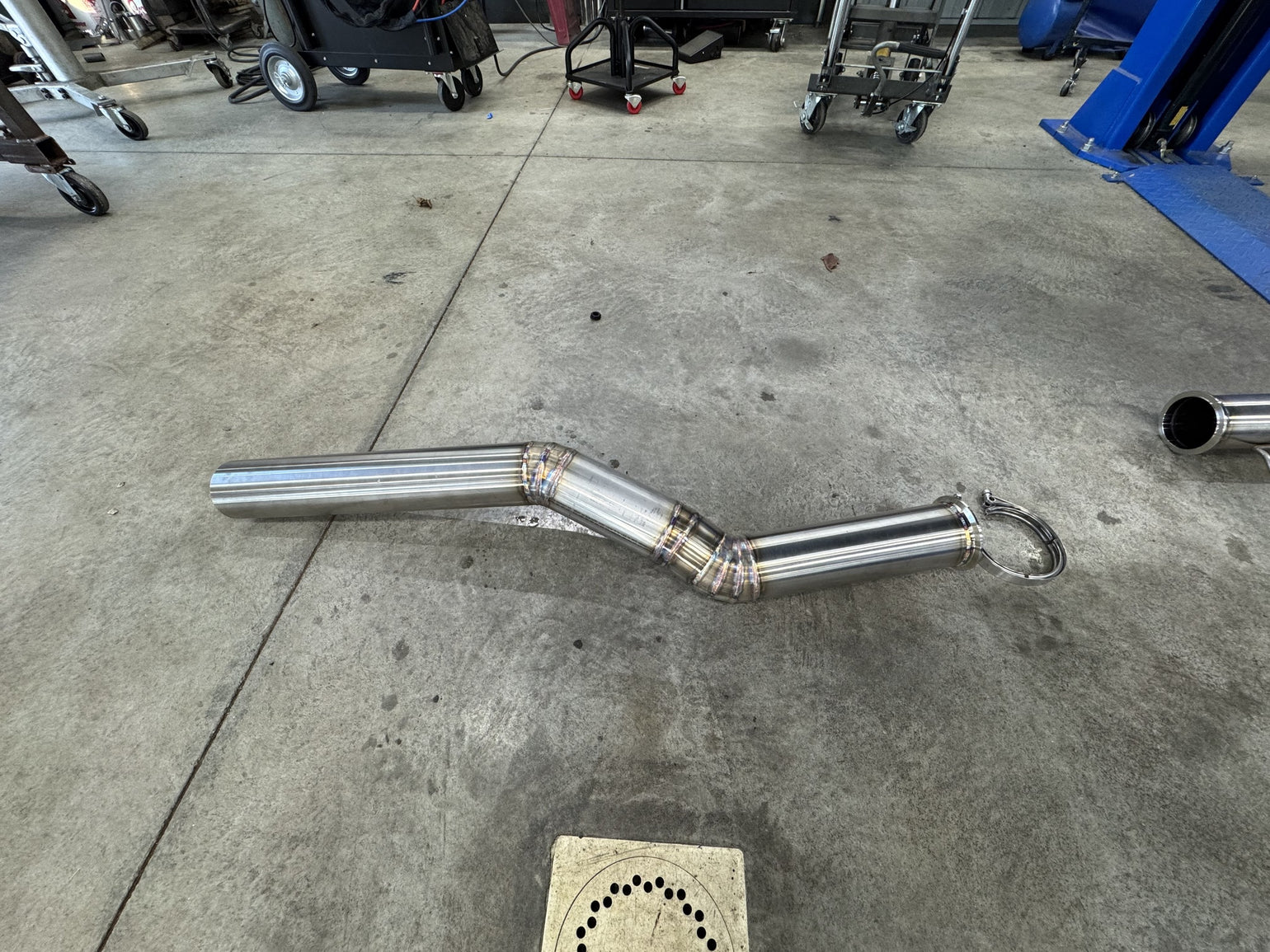

Stainless exhaust components are back-purged where the joint design and application require internal shielding. An unpurged stainless weld oxidizes on the inside of the tube — the granular contamination welders call sugaring — leaving a compromised joint surface directly in the gas path. Purging costs time and gas. It is not optional where the application calls for it.
Filler metal is selected for the base metals and the service conditions of the joint, not by habit. For selected compatible dissimilar-metal or alloy-transition joints, that can mean a filler such as 309L — but 309L is not a universal answer, and dissimilar-metal joints are evaluated individually before we commit to an approach. This is where TIG welding for automotive fabrication in PA is easy to advertise and harder to practice: the quality of the joint is set by decisions made before and during the weld, not by the final photo.
Performance fabrication services
As a performance fabrication shop serving Western PA and the surrounding Tri-State area, we design, build, and modify:
- Turbo manifolds
- Downpipes
- Full and partial exhaust systems
- Wastegate routing

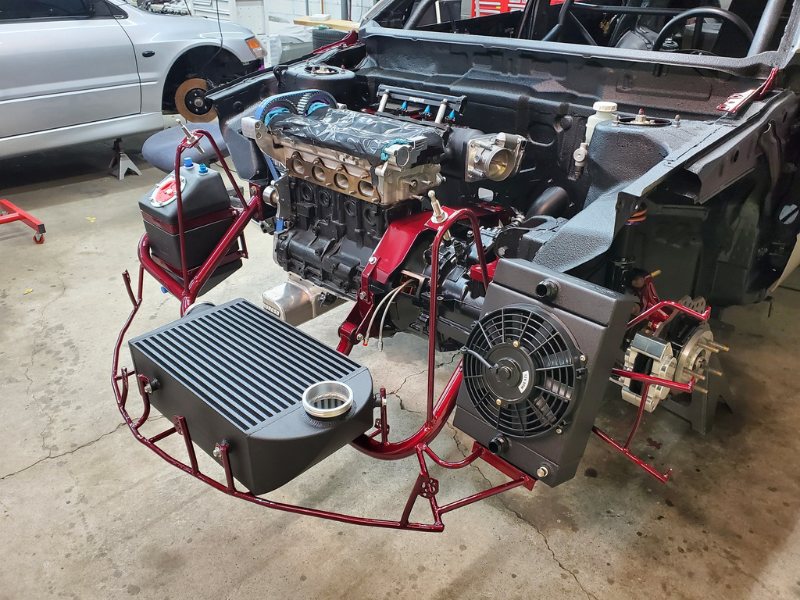

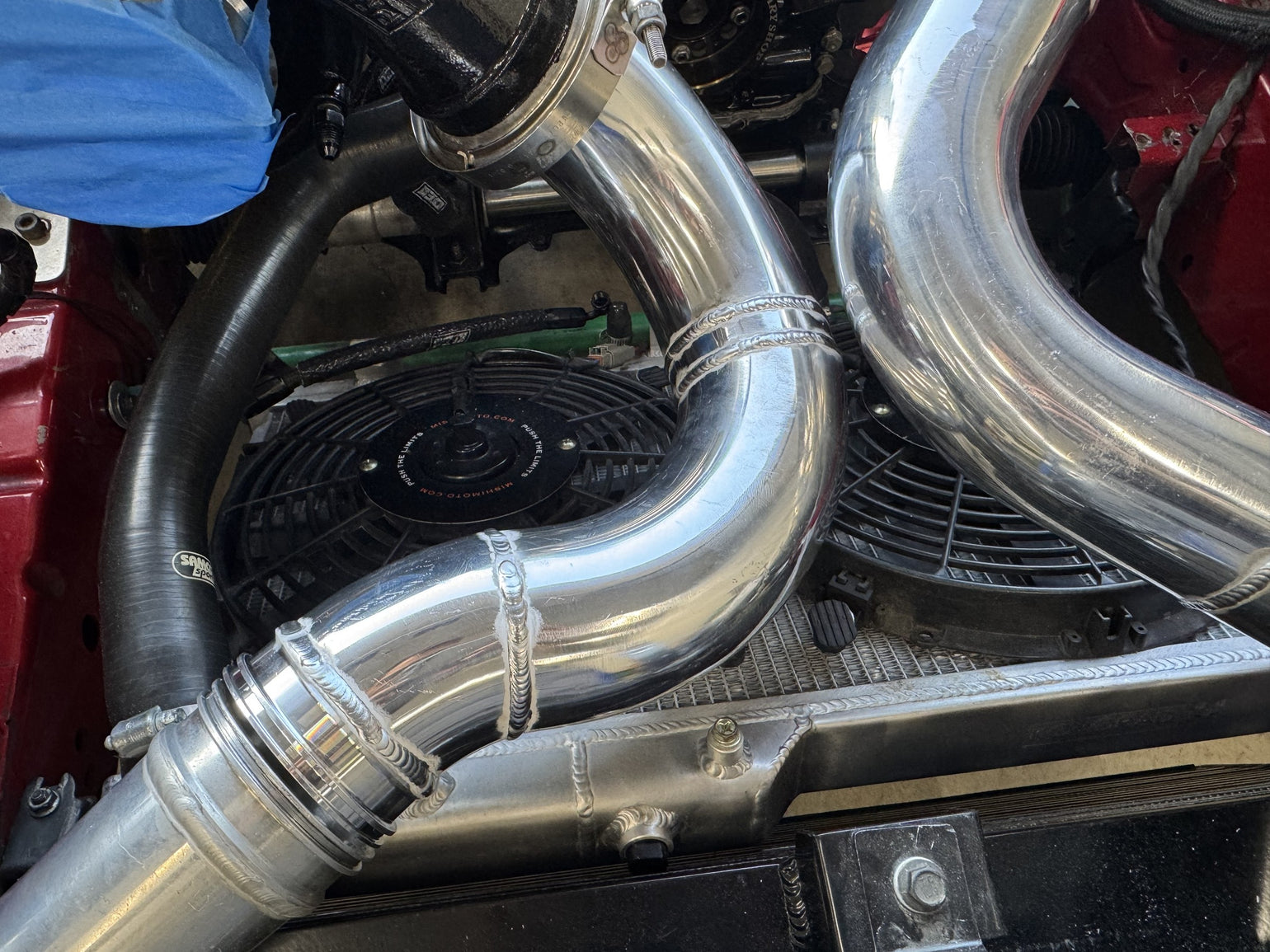

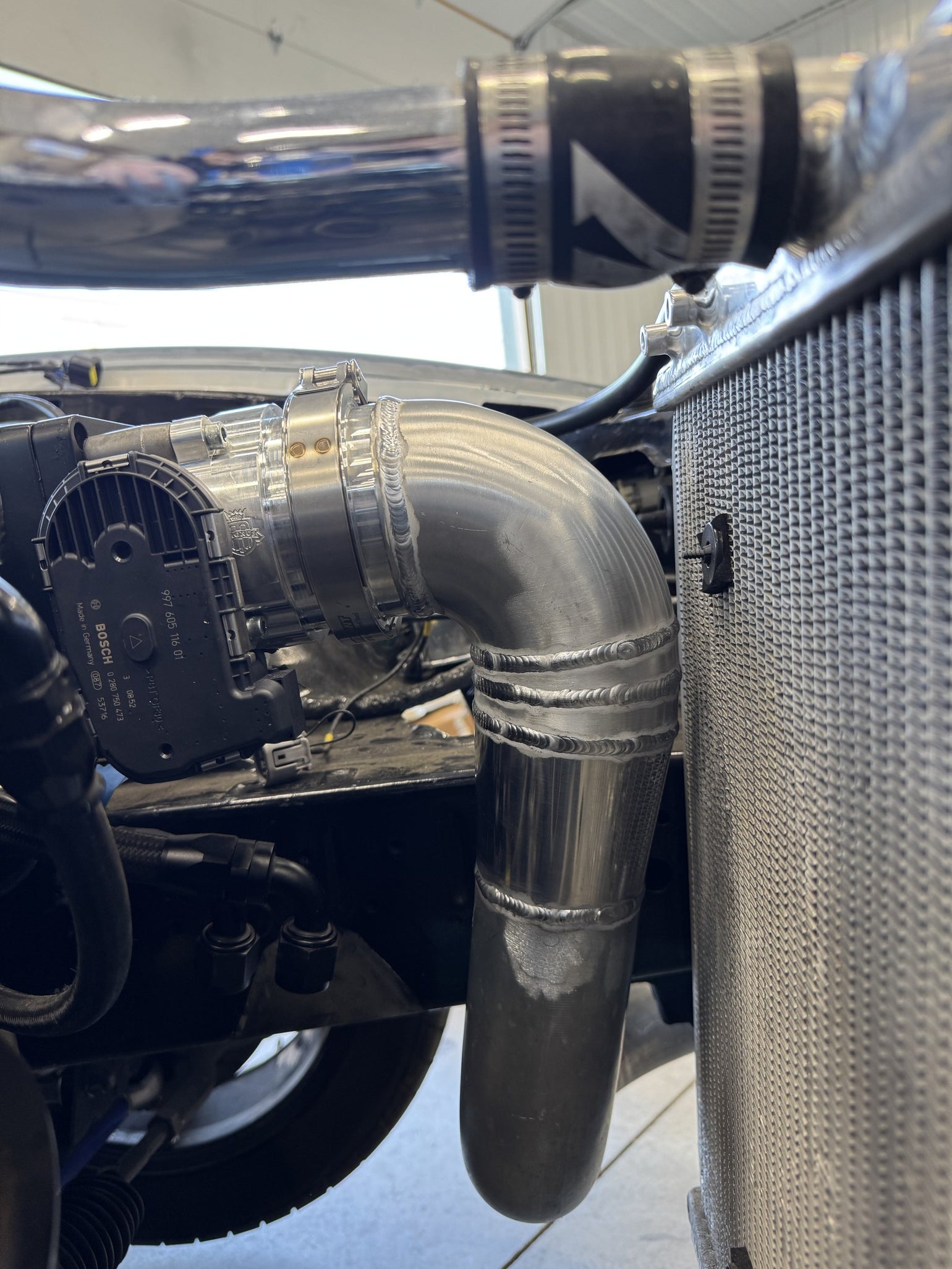

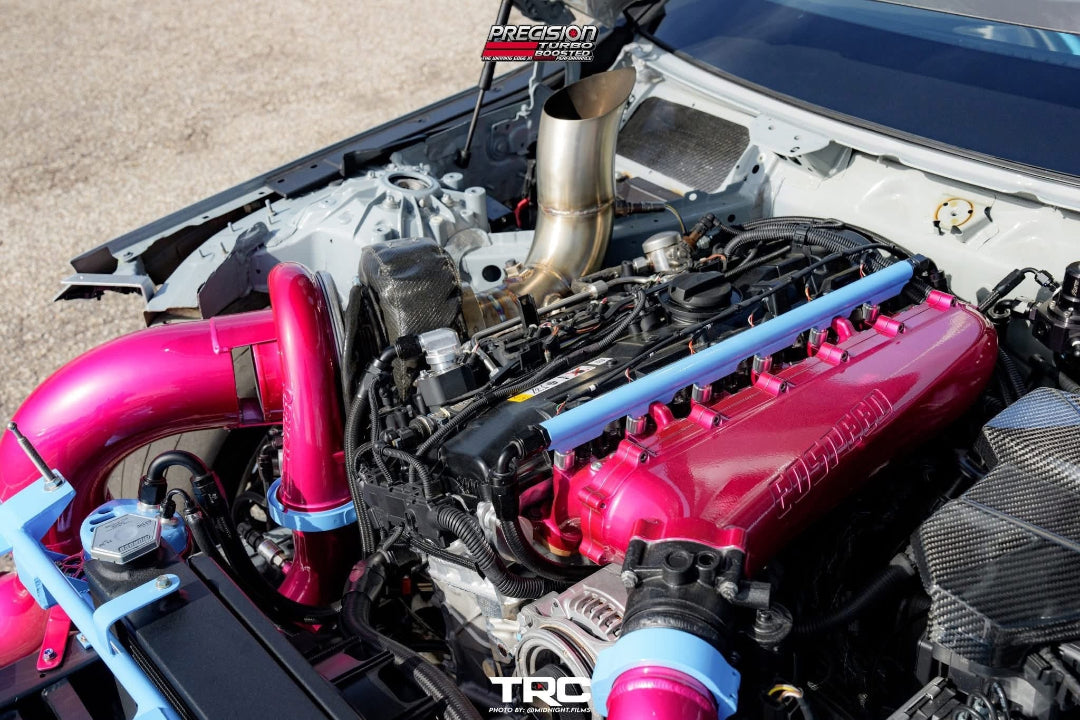

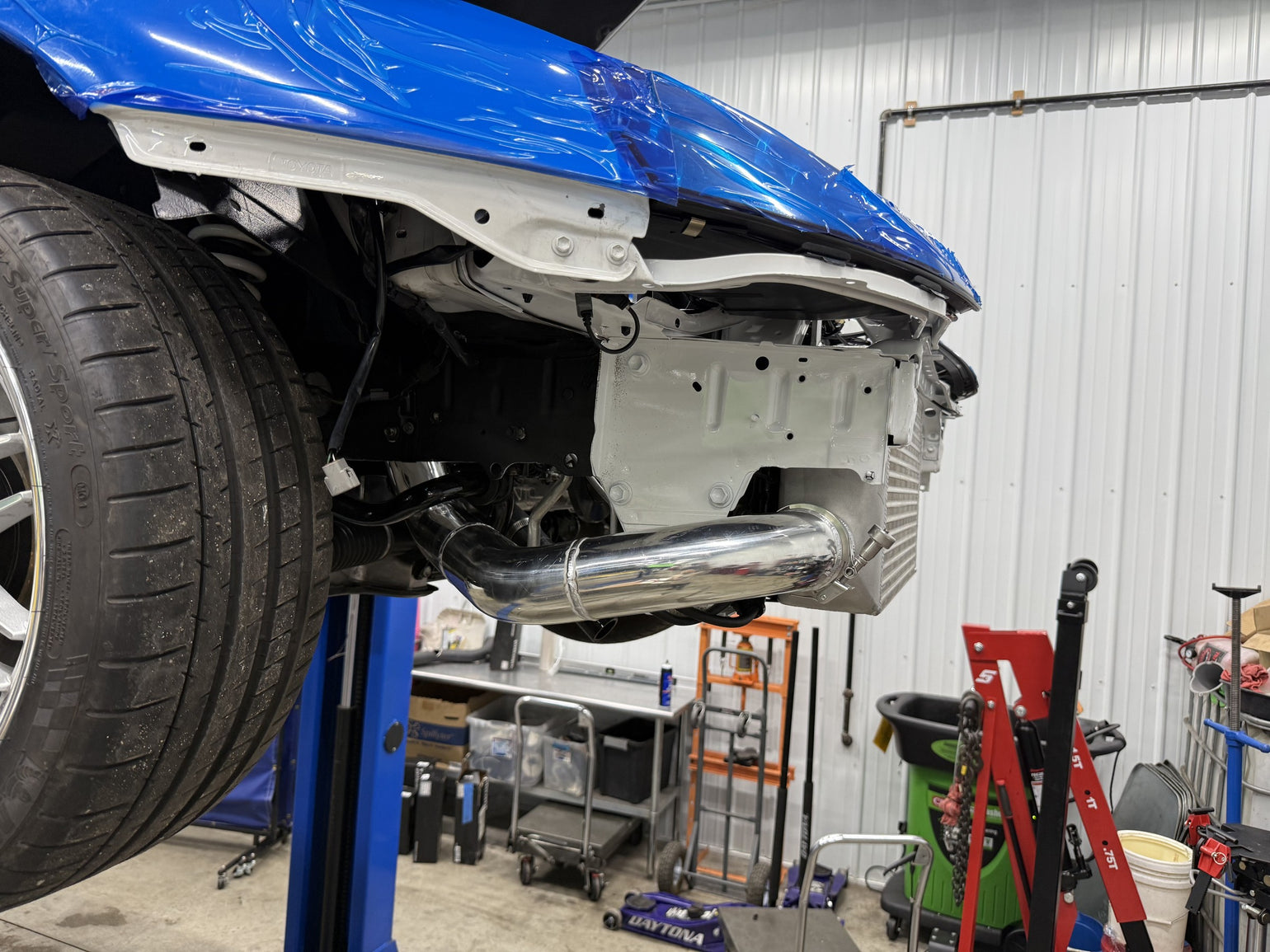

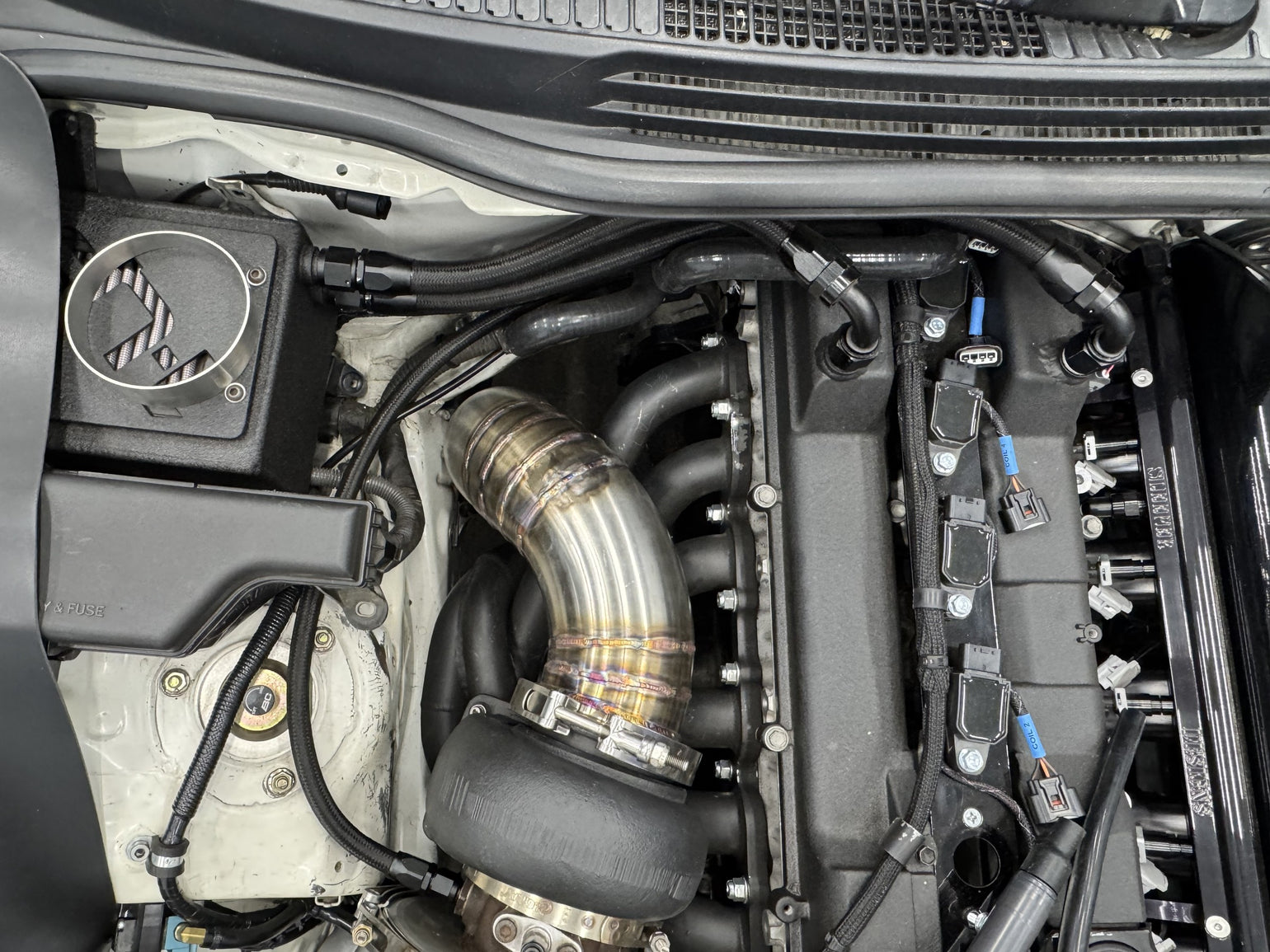

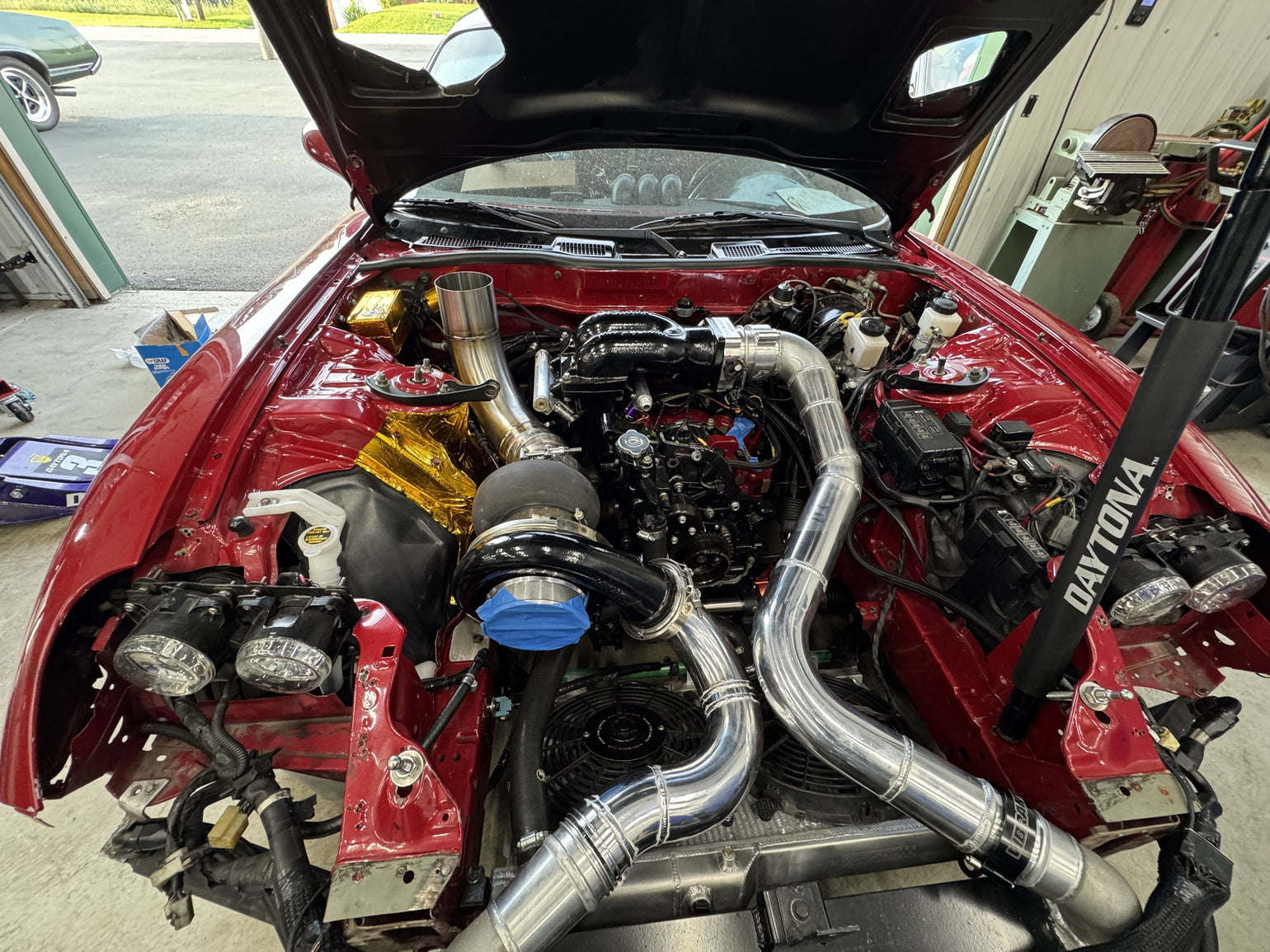

- Intercooler and charge piping
- Intake piping
- Catch-can and breather systems

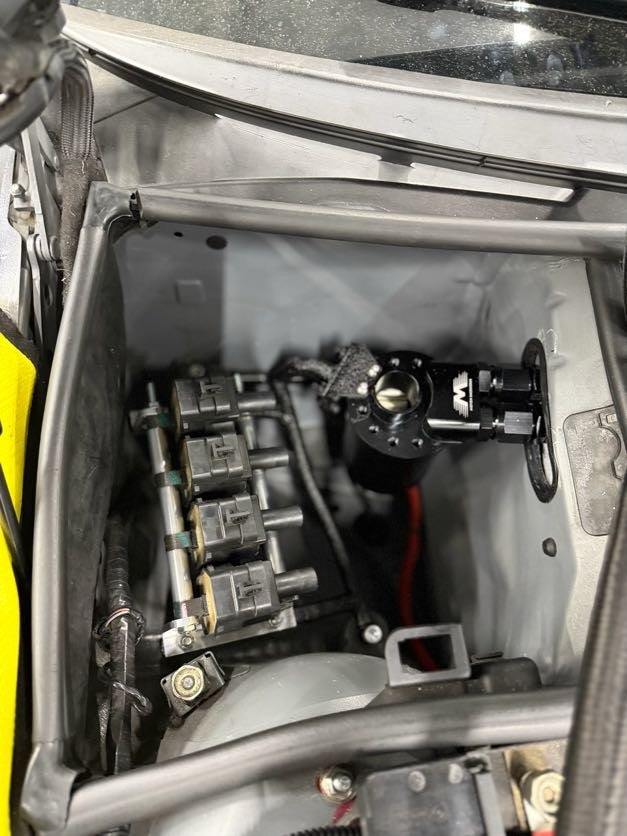

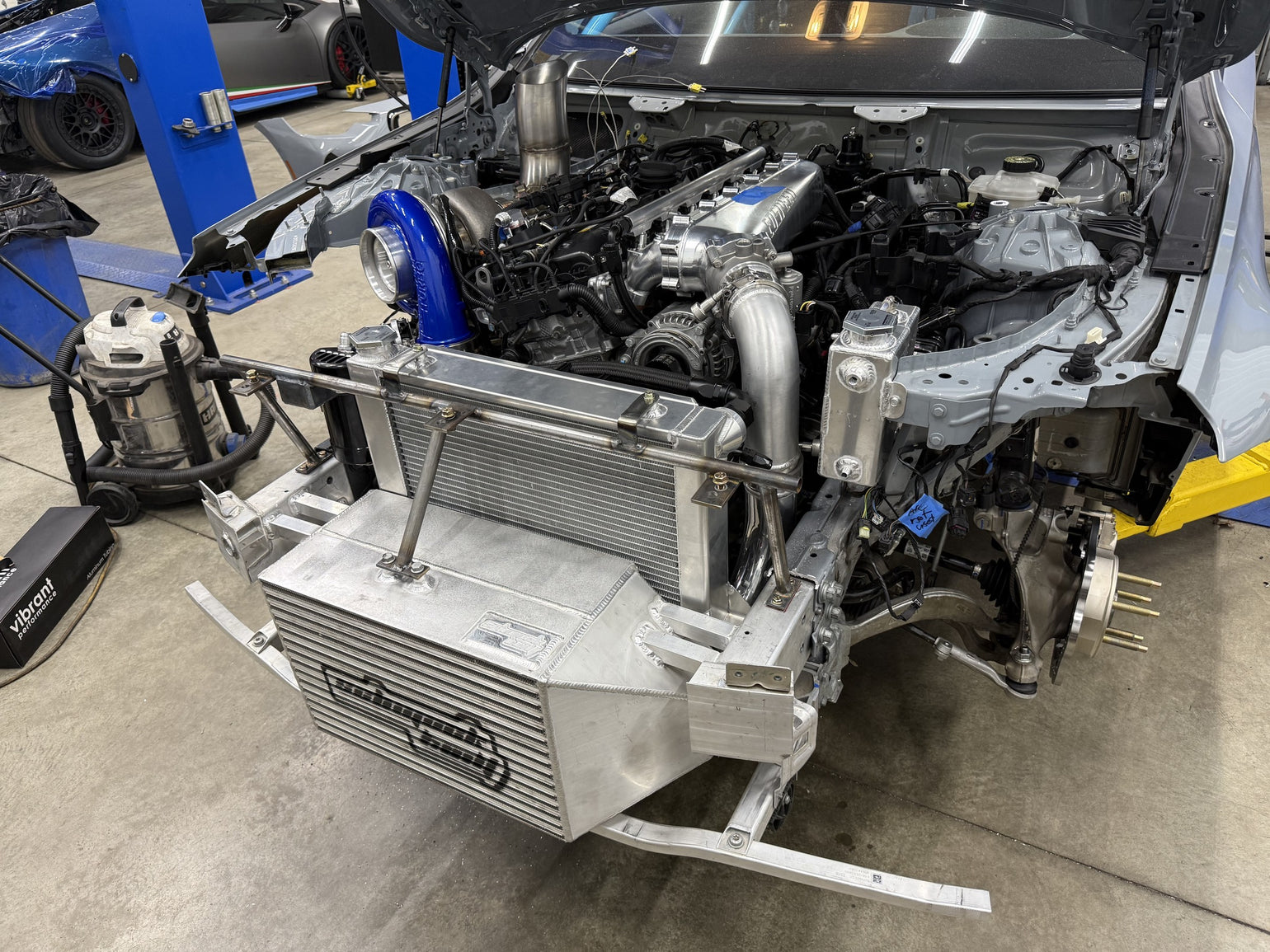

- Brackets and equipment mounting
- One-off components
- Modification and repair of existing fabricated systems
Repair and modification work starts with an assessment of what is already on the car. Some existing fabrication is worth building on; some is not. We tell you which is which before work begins, because welding good material to a poor foundation wastes your money twice.

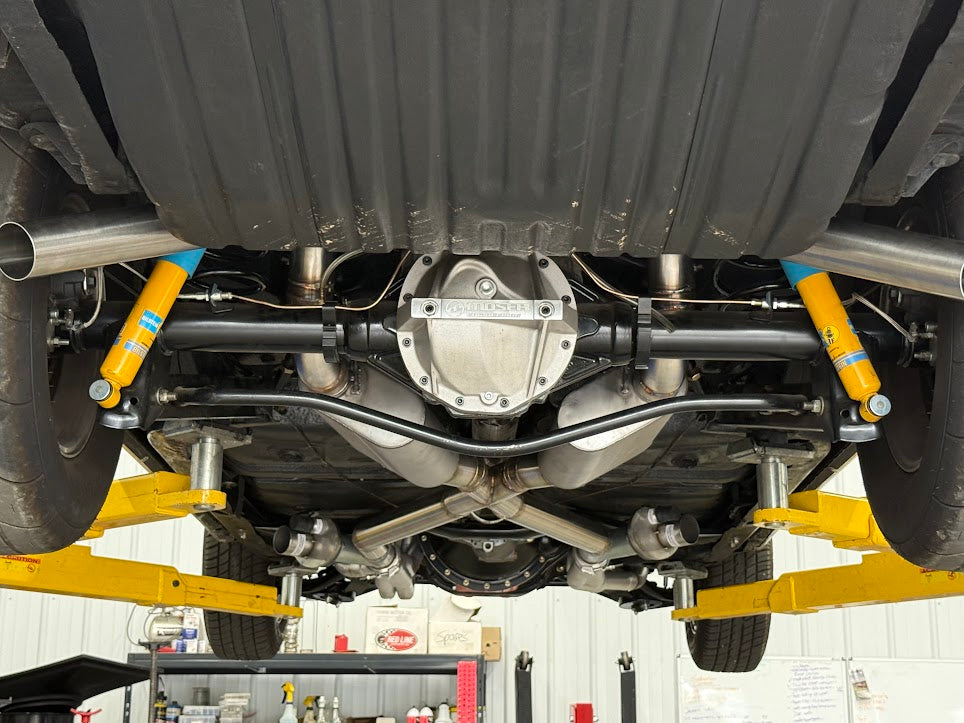

Exhaust and turbo-system fabrication

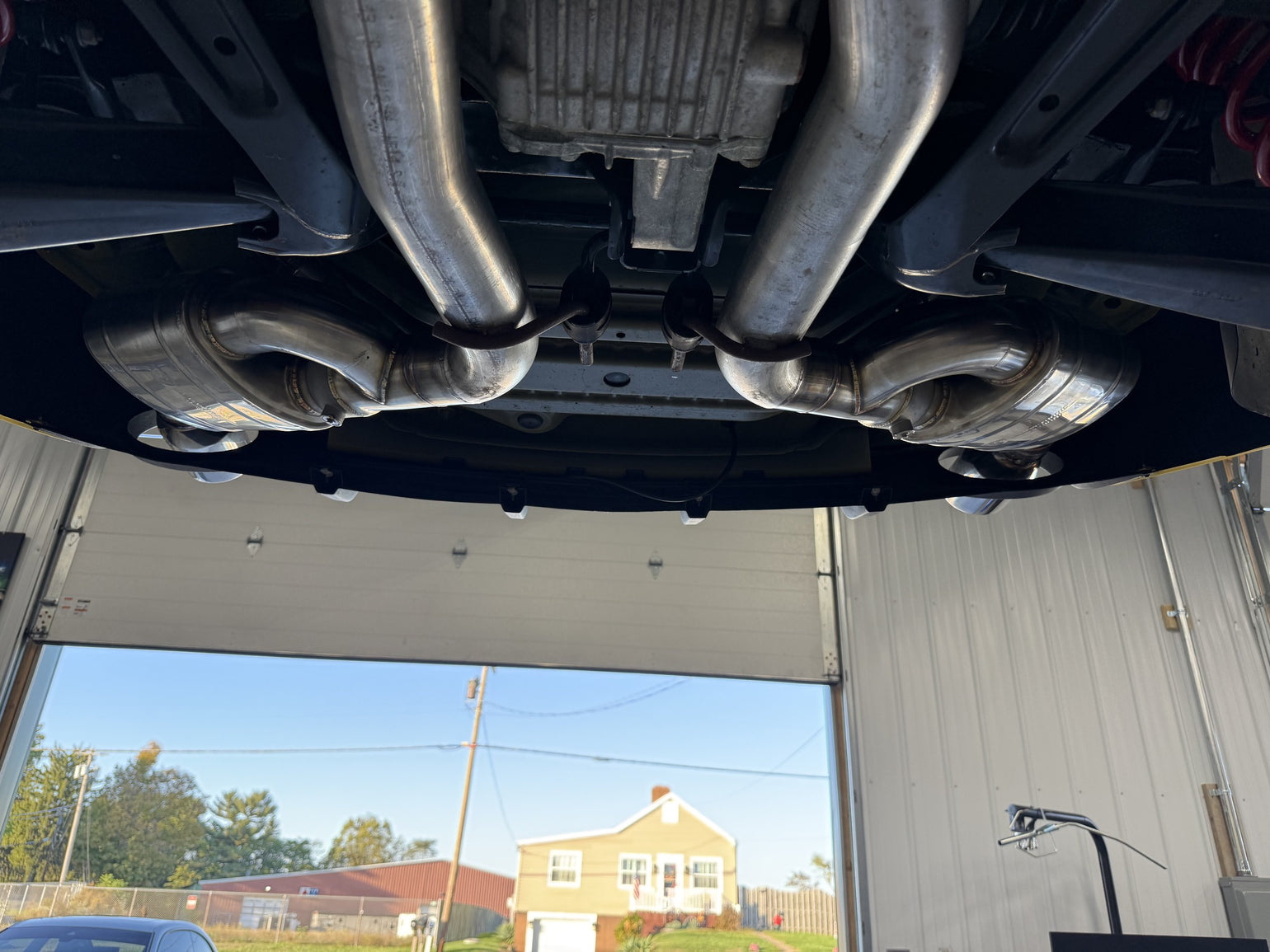

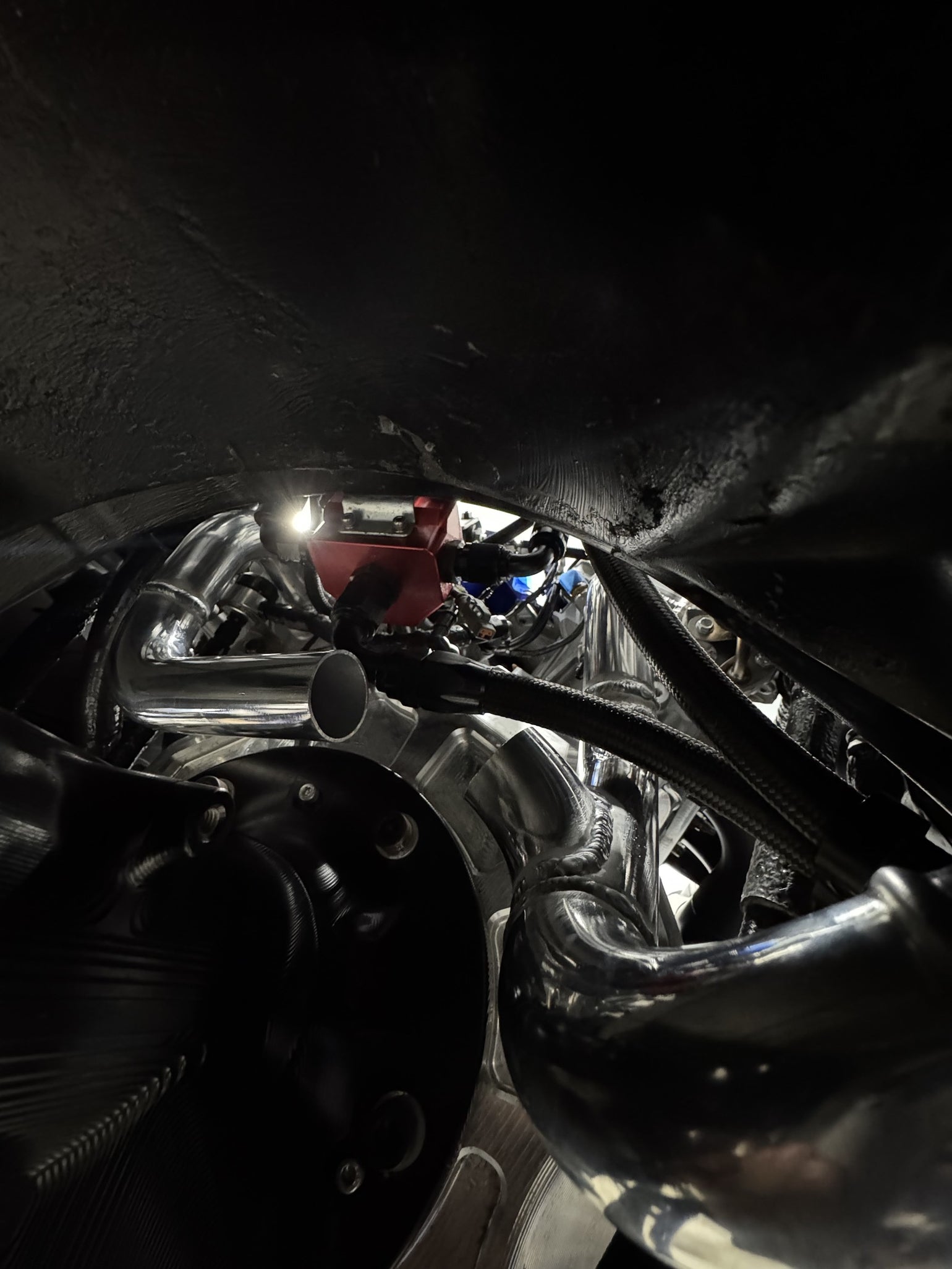

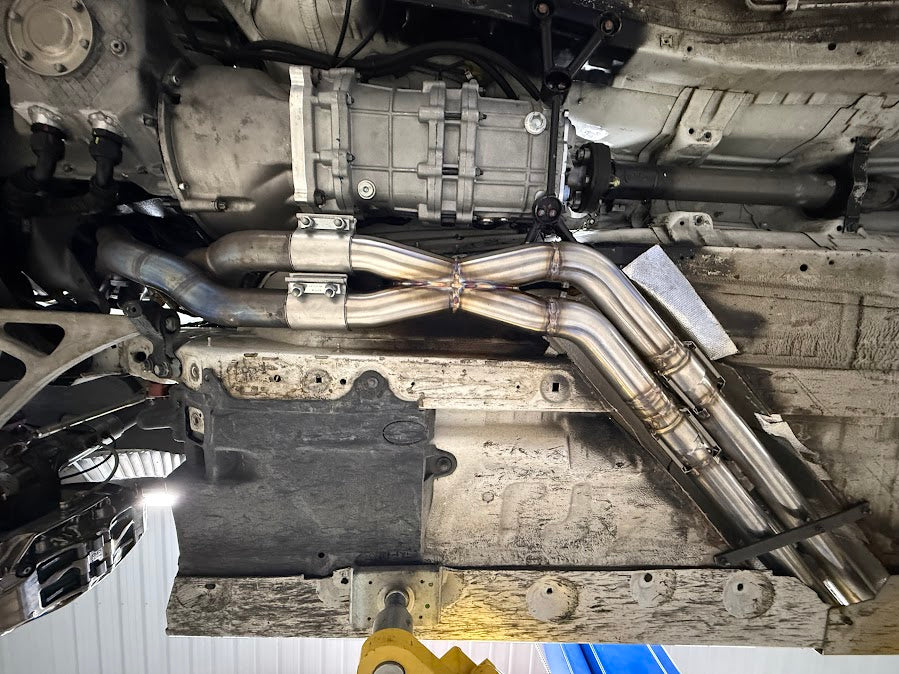

Custom exhaust fabrication for Pittsburgh-area performance cars is routing and packaging work as much as it is welding. A system has to clear the ground, survive driveline movement and thermal expansion, hang from supports placed where the structure can take them, and keep heat away from wiring, lines, and anything rubber. A system that fits on the lift but contacts the body at full suspension travel was never finished.

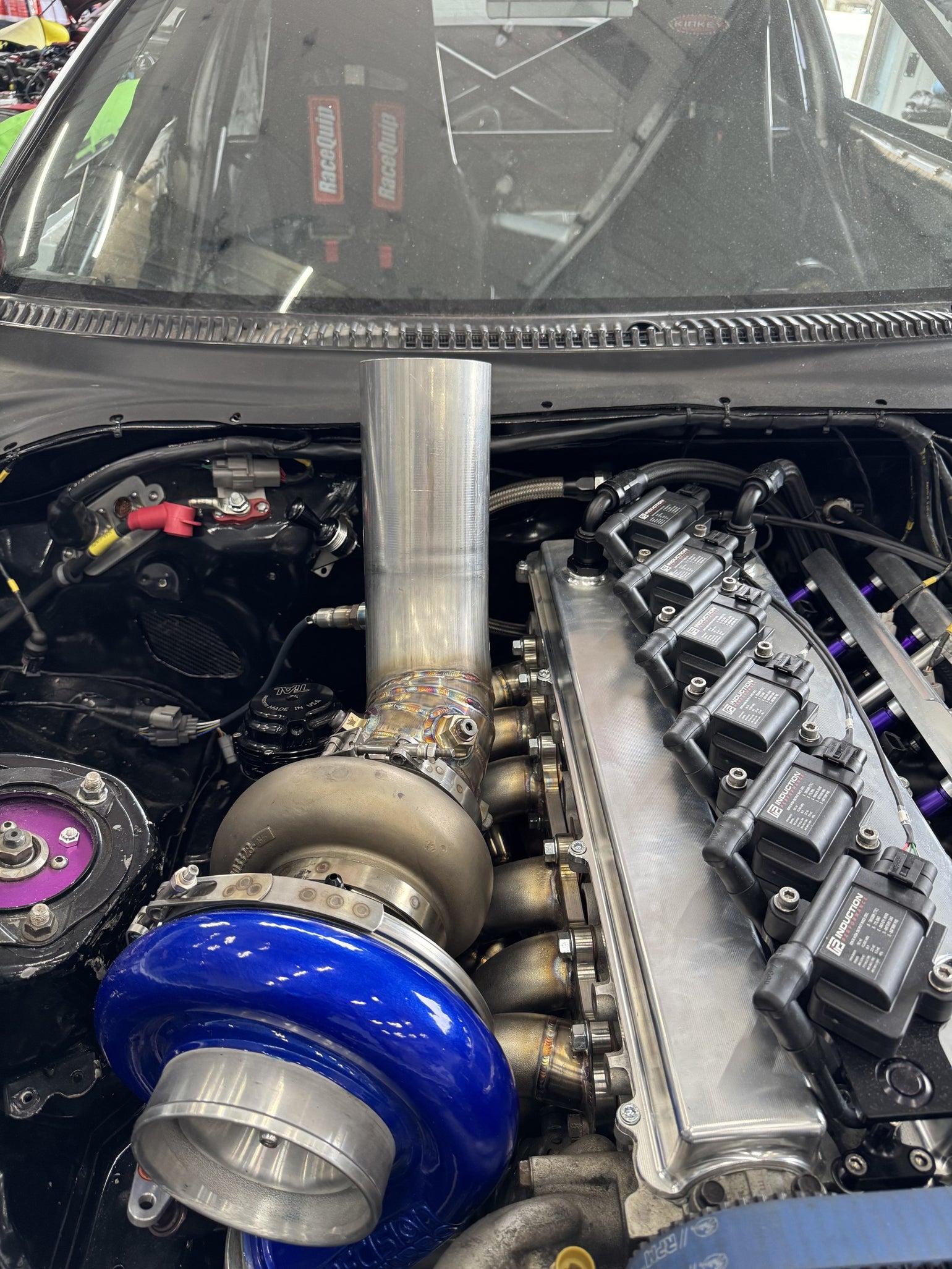

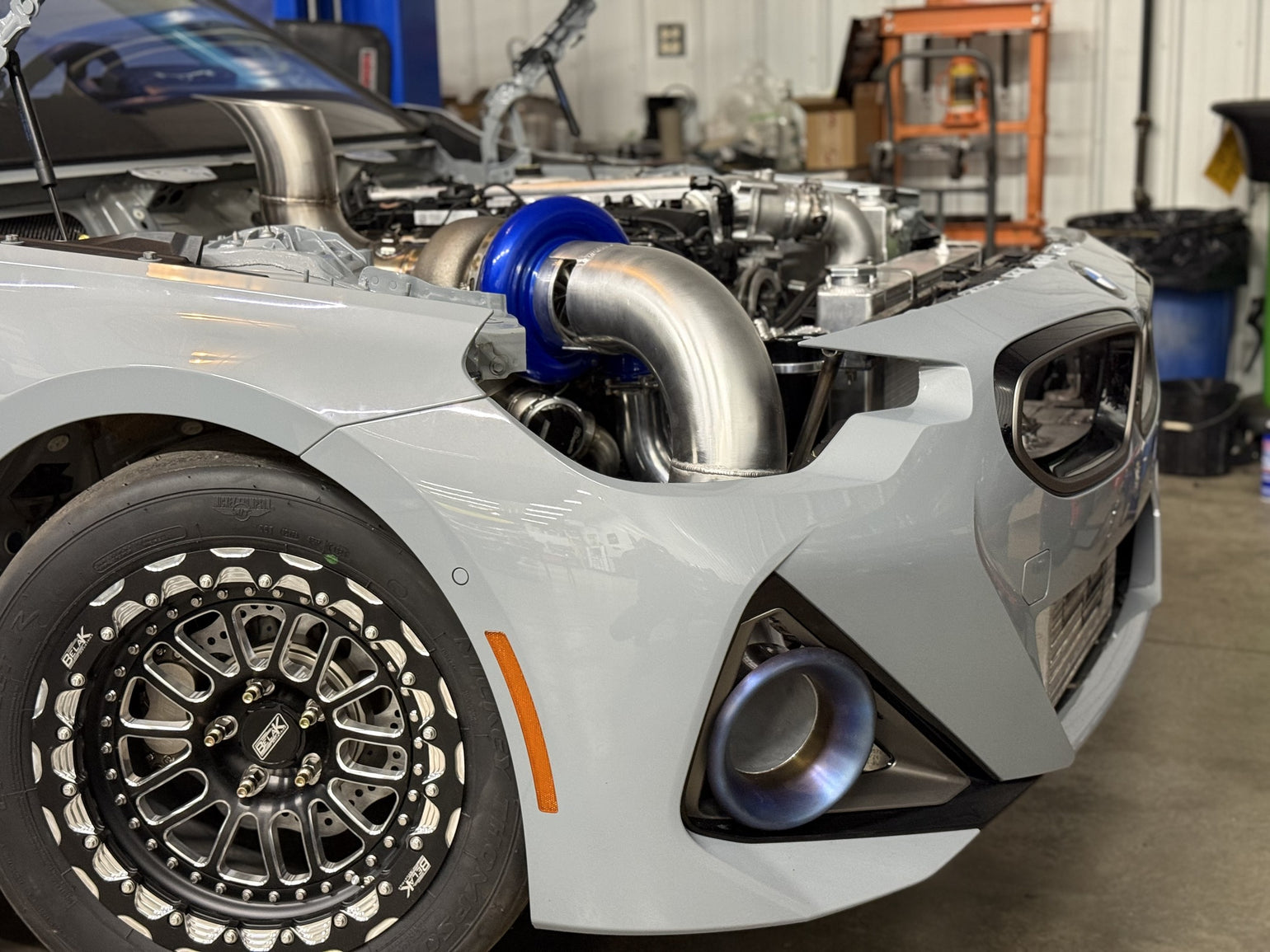

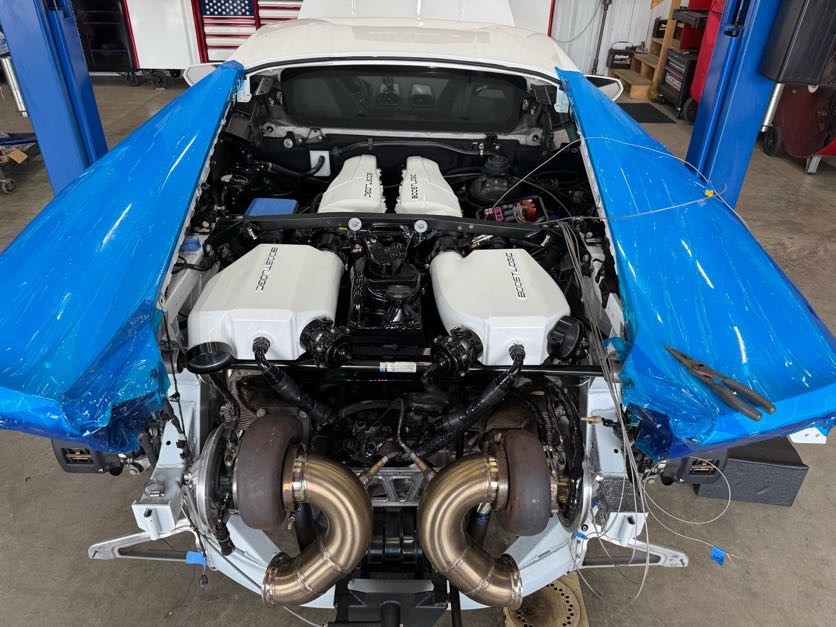

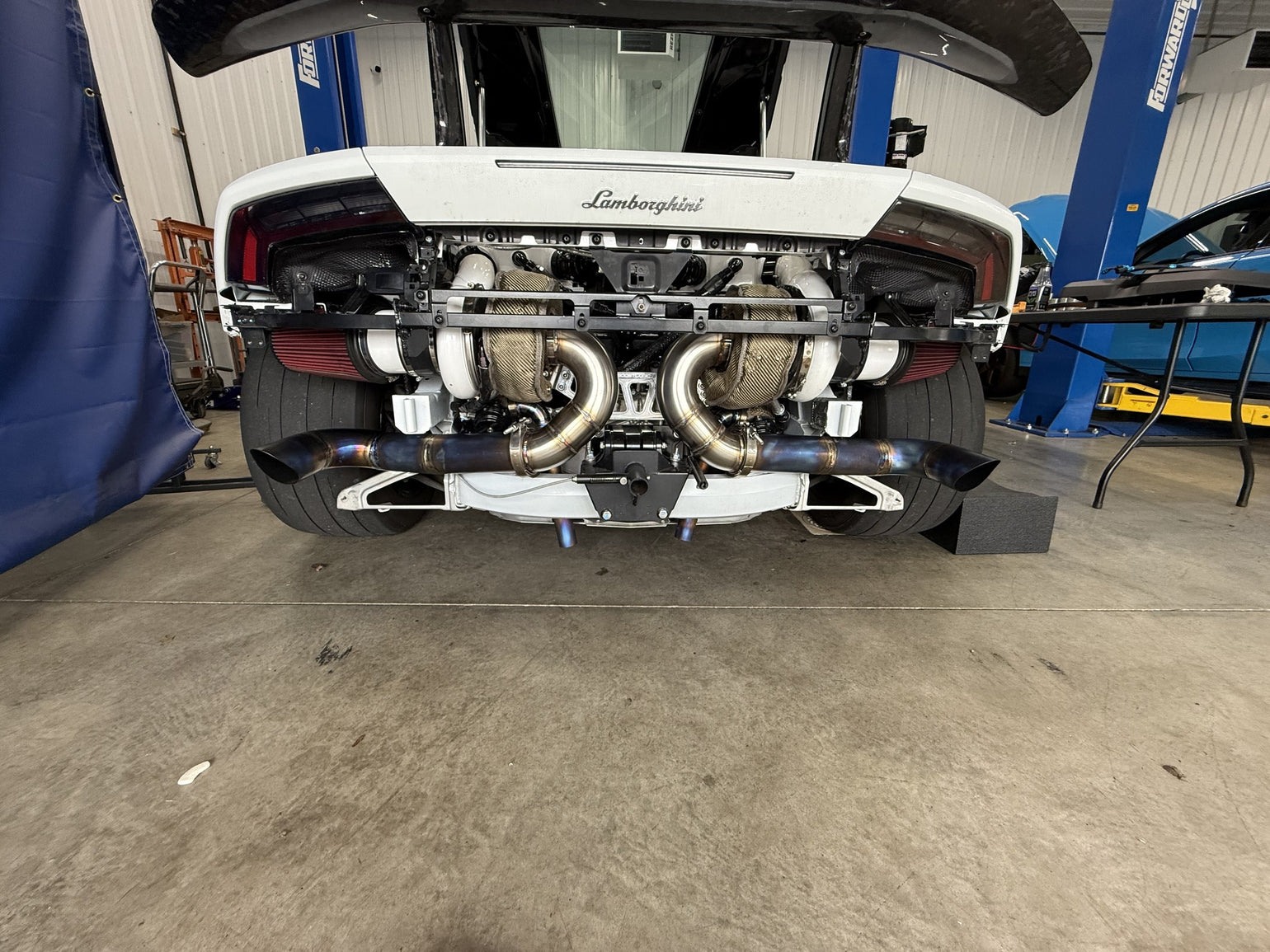

Turbo systems raise the stakes. As a custom turbo manifold fabricator, we design around the realities the part will live with: repeated heat cycling, vibration, and the mass of a turbocharger hanging off the flange. That means runner geometry chosen for the application, joint placement and component access planned so every required weld can be completed correctly, controlled weld sequencing to manage flange distortion, and bracing where the design requires it. Wastegate routing is part of the design rather than an afterthought — the gate needs a favorable path to the flow it is meant to bleed, or boost control suffers no matter what the controller does.
Connection choices — V-band versus flanged joints, slip sections, where the system breaks apart — are made for serviceability. If the turbo cannot come out without a cutoff wheel, the system is wrong.

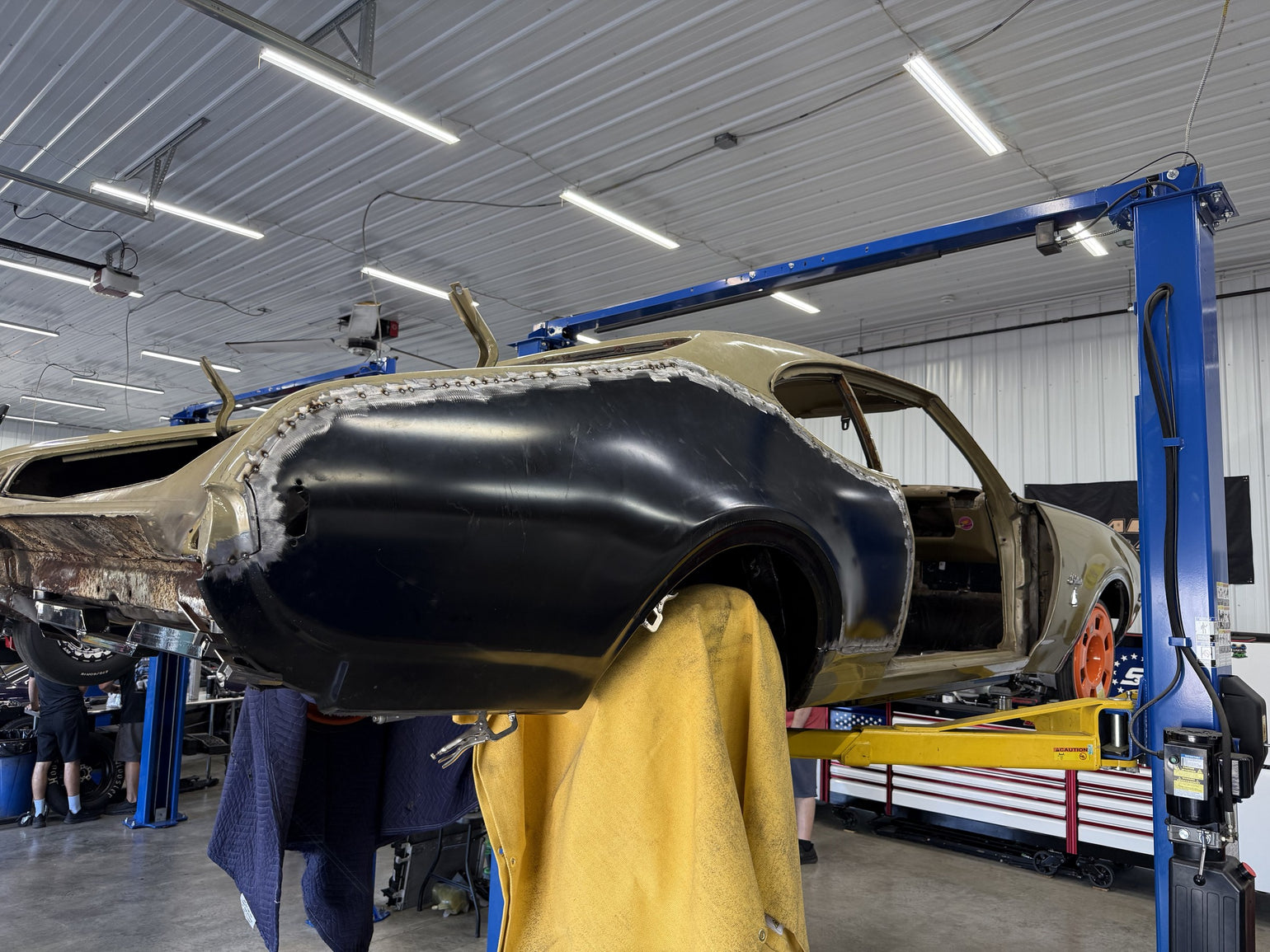

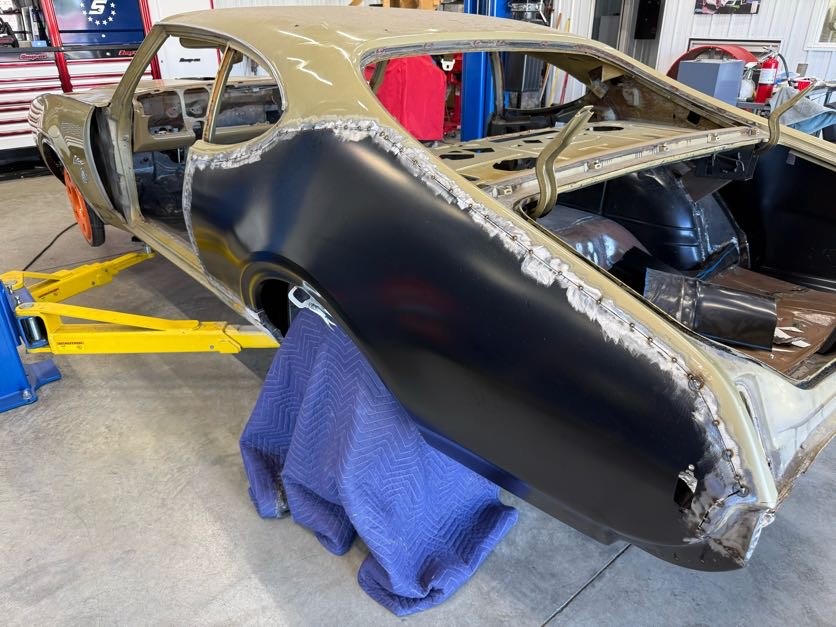

Structural, restoration, and general automotive fabrication

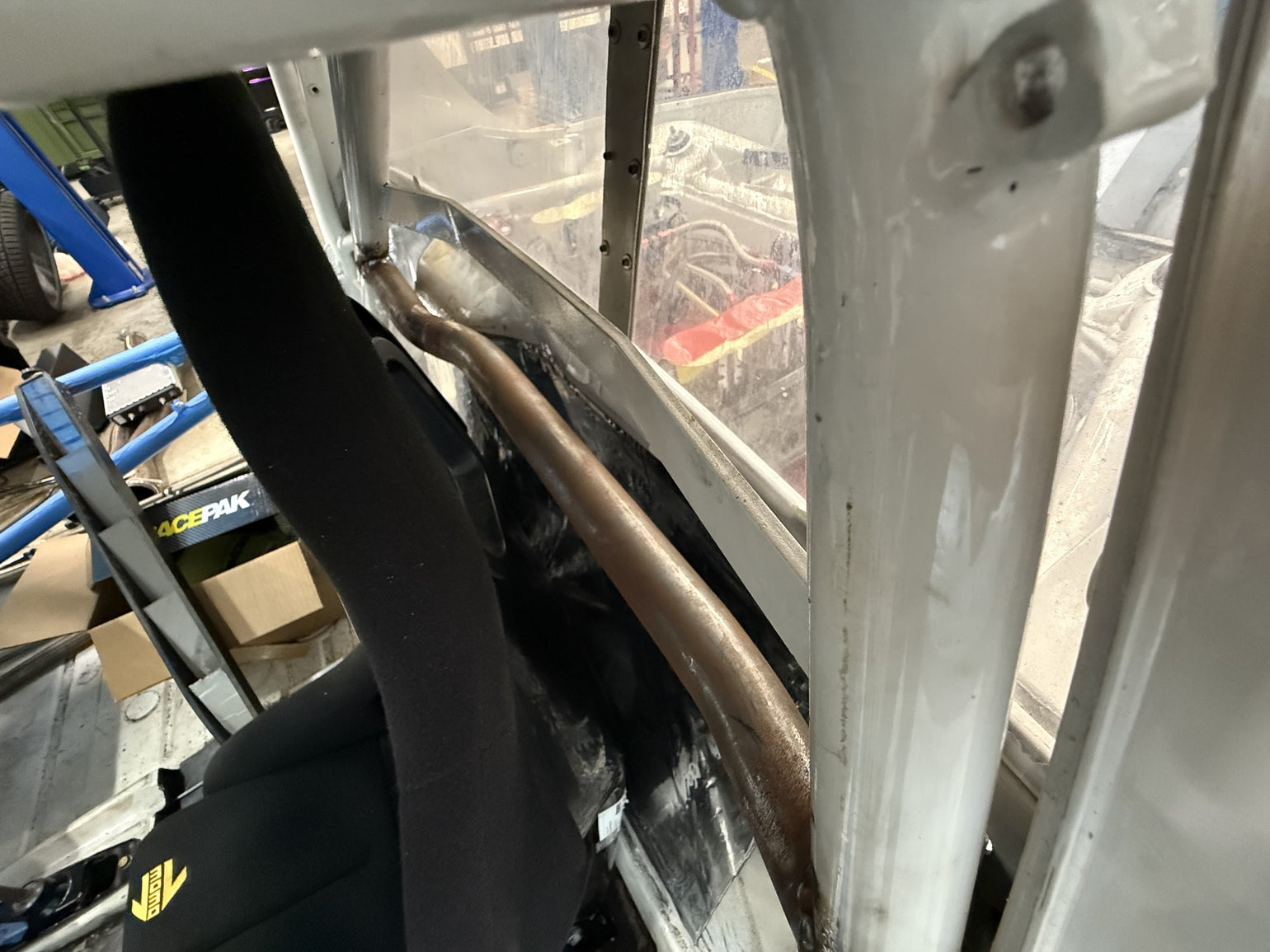

Fabrication at Grade A Garage is not limited to the engine bay. We take on frame and chassis repairs, rust and damaged-metal replacement, custom brackets and mounting solutions, sheet-metal work, reinforcement and repair components, and restoration-related fabrication.
These projects are accepted only after inspection. Corrosion and prior repair work hide behind paint, seam sealer, and undercoating, and the true scope of a rust repair is rarely visible in photographs. We evaluate the vehicle, define what the repair actually requires, and are direct about feasibility — including when a project is not a good candidate for the outcome the owner wants.
Project evaluation and quoting
Every fabrication project starts with an inquiry, not a price.
We review your photos, measurements, and objectives, then come back with questions about materials, packaging, and constraints where the details matter. Structural, restoration, and tightly packaged projects typically require an in-person inspection before scope can be set. Once the scope is defined, you get a quote based on what the project actually involves.
Quoting from a defined scope protects both sides: you know what you are paying for, and we know what we are building.
Submit a fabrication inquiry
If you have a project in mind, send it in using the form below. To evaluate it properly, include:
- Year, make, and model
- Engine and drivetrain
- Project objective
- Existing modifications
- Materials involved, if known
- Packaging or clearance constraints
- Target power level, where relevant
- Intended vehicle use
- Current photographs
- Reference measurements or drawings
- Whether the vehicle currently runs and drives
- Desired completion window
The more complete the information, the faster we can tell you whether the project fits, how we would approach it, and what it will take.
