AWD Dyno Tuning and Custom ECU Calibration for Pittsburgh and Western Pennsylvania
A legitimate calibration session is not a wide-open-throttle pull with a printout at the end. It is a controlled process: fueling verified against targets across the load range, ignition timing advanced only as far as measured knock response allows, boost control mapped where the platform requires it, and part-throttle behavior resolved so the car drives correctly. Thermal trends are watched between passes, because a tune that only holds together on a cold engine is not finished. The vehicle has to be mechanically ready before any of it starts, and every change is evaluated under repeatable conditions, so a gain on the screen reflects the calibration rather than test-to-test noise.
That is the standard Grade A Garage applies to AWD dyno tuning for the Pittsburgh region. From Burgettstown, we are within reach of Western Pennsylvania, the Ohio Valley, the West Virginia Panhandle, and the surrounding Tri-State area — and we run two dynamometers, an in-ground DynoJet AWD 424xLC chassis dyno and a Mainline ProHub 3000CCS hub dyno, so the right tool is on hand for the vehicle and the goal. If you care how your car gets calibrated, it is worth the drive.
Two dynos, so we can use the right tool for your car
Grade A Garage runs two dynamometers. Depending on your vehicle and the goal of the session, we choose the setup that gives the most accurate, useful result.
DynoJet AWD chassis dyno (424xLC)
An all-wheel-drive chassis (roller) dynamometer. Your car drives on the dyno’s rollers under its own wheels and tires, and it can test all-wheel-drive, rear-wheel-drive and front-wheel-drive vehicles. Its load-control system lets us do more than a single power pull — we can hold the car at a steady speed or load for part-throttle and steady-state calibration, and run sweep and road-load tests.

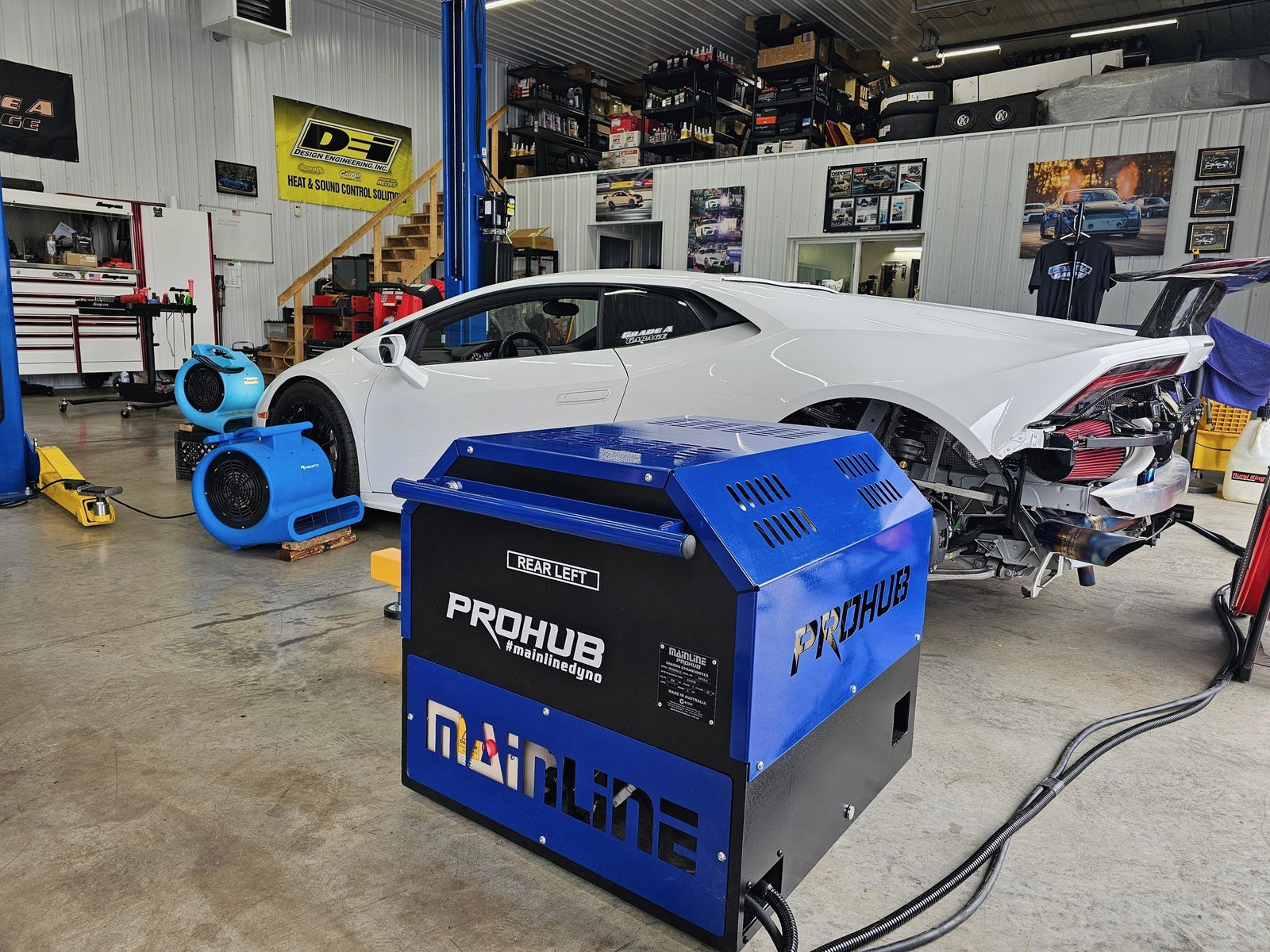

Mainline ProHub 3000CCS (2WD hub dyno)
A hub dynamometer for rear-wheel-drive and front-wheel-drive cars. Instead of spinning rollers, we remove the wheels and tires and bolt the dyno directly to the car’s hubs. With no tire to slip or flex, a hub dyno is extremely repeatable and is especially useful for high-power builds and precise, steady-state tuning.
Neither dyno is universally “better,” and readings from the two are measured at different points, so they are not directly interchangeable. A chassis dyno reads power at the roller, through the tire; a hub dyno reads power at the axle with the tires removed. We select the equipment based on your vehicle’s configuration and drivetrain, the test objective, the vehicle’s condition, and your tuning or diagnostic needs.

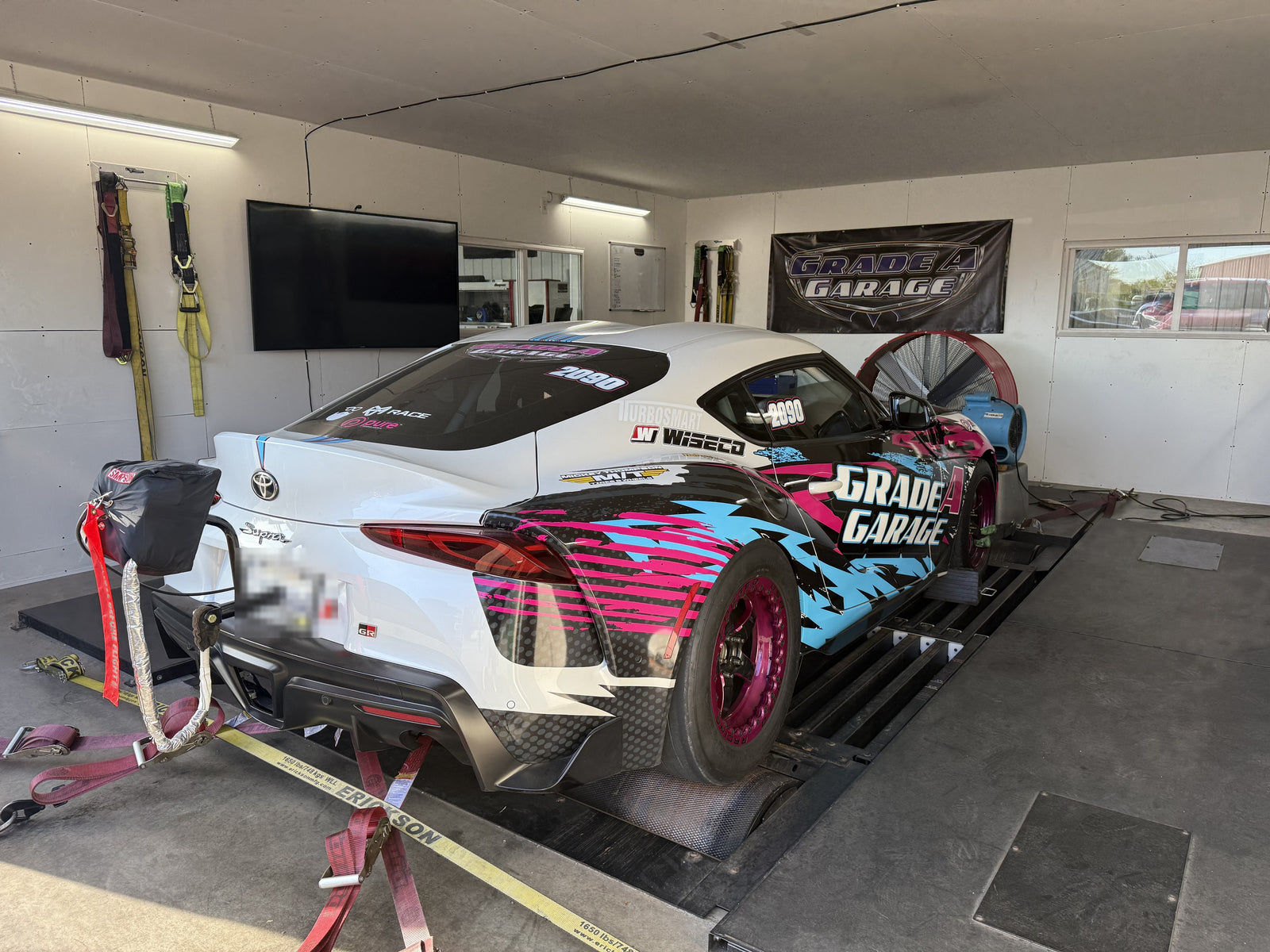

The in-ground Dynojet AWD 424xLC
The in-ground Dynojet AWD 424xLC sits flush with the shop floor as a permanent fixture rather than a portable unit rolled out for the day. That matters in practical ways: low-ground-clearance cars drive on without steep ramps, and because the installation is fixed, strapping, positioning, and test conditions stay consistent session to session — which makes back-to-back comparisons meaningful.
The dyno can accommodate two-wheel-drive as well as all-wheel-drive applications when properly configured, and load-based testing — holding specific speed and load points to examine fueling and timing in the cells that matter — where the equipment configuration and the scope of the session support it.
It also moves the work off public roads. Sustained load, repeated passes, and instrumented monitoring of a modified vehicle are not things to attempt in traffic.
Dyno testing versus ECU calibration
These are different services, and the distinction matters when you book.
- Baseline horsepower and torque testing. A documented measurement of where the vehicle stands under controlled conditions — useful before and after modifications, but a data point, not a calibration.
- Diagnostic dyno testing. Reproducing a problem under load: a misfire that only appears under boost, fuel pressure that sags at high demand, boost that oscillates at a specific rpm. The dyno holds the operating condition where the issue lives.
- Custom ECU calibration. A full session working through fueling, ignition timing, boost control where applicable, load-range coverage, knock monitoring, and drivability — followed by verification passes to confirm the result repeats.
- Post-modification verification. After new parts go on, confirming the existing calibration still fits the combination before it is driven hard.
A baseline pull tells you where the car is; a calibration changes it. The two differ in scope, time, and preparation, which is why we confirm the service before the appointment.
Platforms we support
Support depends on the specific vehicle, ECU, available tuning solution, modification list, fuel system, and mechanical condition — not on the badge. The sections below describe how we approach common platforms. Whether a given vehicle is a candidate for dyno testing, custom calibration, or both is confirmed during the pre-scheduling review, and unusual builds or standalone engine-management combinations always require that review first.
Subaru
Subaru dyno tuning for Pittsburgh-area owners centers on the turbocharged EJ- and FA-series engines, which respond well to careful calibration and punish careless work. These engines are knock-sensitive: safe output depends on matching fueling and timing to the actual injectors, turbo, intake, and fuel in the car, not on a map transplanted from someone else’s build. Proper calibration on this platform is built against logged knock response and verified fueling, and support depends on the ECU and the tuning access available for the specific model year and modifications.
Mitsubishi Evolution
Evo VIII/IX 4G63 and Evo X 4B11T builds commonly arrive with turbo upgrades, fuel-system changes, and intake conversions that invalidate the factory airflow calibration. Getting one right means rebuilding fueling from verified data, mapping boost control to the actual turbo, and confirming knock behavior under sustained load — exactly the work a load-capable AWD dyno exists for.
Nissan R35 GT-R
The VR38-powered GT-R layers sophisticated all-wheel-drive, launch, and torque-management systems on top of its engine calibration, and those systems respond to what they sense. Testing one properly means an AWD dyno, correct strapping and warm-up, and attention to what the factory systems are doing on each pass. Calibration scope depends on the ECU access solution and the modification list, so GT-R sessions are always scoped through pre-scheduling review.
GM LS
GM LS dyno tuning in Western PA covers a wide spread: cam-and-heads street cars, LS swaps the factory never imagined, and forced-induction combinations. Swaps in particular need calibration work beyond a mail-order file — airflow corrections for the new intake and camshaft, idle and transient fueling, spark tables built for the actual combination, and a review of torque-management behavior. Naturally aspirated or boosted, the combination should be verified under load rather than assumed.
BMW
Modern turbocharged BMWs are heavily calibration-dependent: the factory ECU actively manages boost, timing, and fueling against sensed conditions, so evaluating a modified car means watching what the ECU actually does under load, not what the flash file claims. Support varies significantly by ECU generation and available tuning solution, so BMW projects are confirmed individually before scheduling.
Other supported applications
Other two-wheel-drive and all-wheel-drive performance vehicles are considered case by case, including standalone engine-management builds — those require a full review of the hardware, wiring, and base calibration before booking. If your platform is not listed, ask. Support is determined by the combination, not by this list.
What happens before a dyno session
We schedule from information, not guesses. Before an appointment is confirmed, submit:
- Year, make, and model
- Engine and transmission configuration
- ECU or standalone engine-management system
- Tuning software or access solution
- Complete modification list
- Fuel type
- Injector and fuel-system configuration
- Boost-control configuration
- Known mechanical or electrical issues
- Current calibration status
- Desired use and performance objective
This review protects your time and your engine. Vehicles with fluid leaks, misfires, unstable fuel pressure, overheating, unresolved warning lights, unsafe tires, driveline problems, or incomplete wiring may not be suitable for testing until corrected. Dyno tuning cannot fix a mechanical deficiency — calibrating over one only hides it until load exposes it. Arrive with correct fluid levels, a healthy battery and charging system, adequate ground clearance, and the correct fuel for your setup already in the vehicle — and tell us about any recent changes.
Dyno FAQ
What is dyno testing?
Dyno testing measures your vehicle’s power and how it behaves while it runs on a dynamometer in a controlled setting — so we can work from real numbers and data instead of guessing.
What’s the difference between a chassis dyno and a hub dyno?
On a chassis (roller) dyno the car drives large rollers through its own wheels and tires. On a hub dyno the wheels and tires come off and the dyno bolts directly to the axle hubs, which removes tire slip and makes readings very repeatable. We have both and pick whichever suits the car and the job.
Do you work with AWD vehicles?
Yes. AWD cars run on our DynoJet all-wheel-drive chassis dyno, which also handles rear-wheel-drive and front-wheel-drive. Our Mainline ProHub hub dyno covers rear-wheel-drive and front-wheel-drive builds.
Do I need an appointment?
We arrange dyno sessions ahead of time. Call 724-414-5083 or send an inquiry and we’ll get you scheduled.
What information should I provide before scheduling?
Your vehicle’s year, make and model, its engine and drivetrain, any modifications (fuel system, boost, ECU/tuning), and what you’d like to get out of the session.
Does my vehicle need to be mechanically complete?
It should be in safe, running condition with no known severe faults. See “What happens before a dyno session” above, and tell us about your build so we can advise.
Can every vehicle be tuned?
No. Some vehicles or setups may not be suitable, so we review each build first and will be straight with you about what’s possible.
What fuel should be in the vehicle?
Have the correct fuel for your setup and intended tune already in the car, and let us know what you’re running so we can plan the session.
How should I prepare the vehicle?
Follow the readiness guidance above, arrive with the right fuel, and share any recent changes or modifications with us beforehand.
Why enthusiasts travel to Grade A Garage
Grade A Garage is located in Burgettstown, Pennsylvania — west of Pittsburgh in Washington County, an easy drive from the city, eastern Ohio, and the West Virginia Panhandle. If you are weighing the trip, the reasons to make it are practical: the vehicle is reviewed before it touches the rollers, testing happens under controlled and repeatable conditions, the platforms above are familiar territory, and communication stays plain about what is supported and what the data shows. For drivers looking for an all-wheel-drive dyno in PA or a Dynojet tuning shop serving the Tri-State area, the value is the process: custom ECU calibration in Western PA built on verified data that holds up on the road.
Book an AWD dyno or calibration session
Sessions are scheduled after we review your vehicle information and modification details — submit them first, and we will confirm what service fits and whether the combination is supported.
Tell us exactly what the car is and what you want from it — the more complete the submission, the faster we can confirm support and scope the session. Include:
- Name, phone, and email
- Year, make, and model
- Engine and transmission configuration
- ECU or standalone system, and tuning software or access solution
- Complete modification list
- Fuel type, injectors, and fuel-system details
- Boost-control setup (where applicable)
- Known mechanical or electrical issues
- Current calibration status (stock, canned file, previous custom tune)
- Goals and intended use (street, track, drag, dyno-verification only)
- Requested service (baseline, diagnostic, calibration, post-mod verification)
