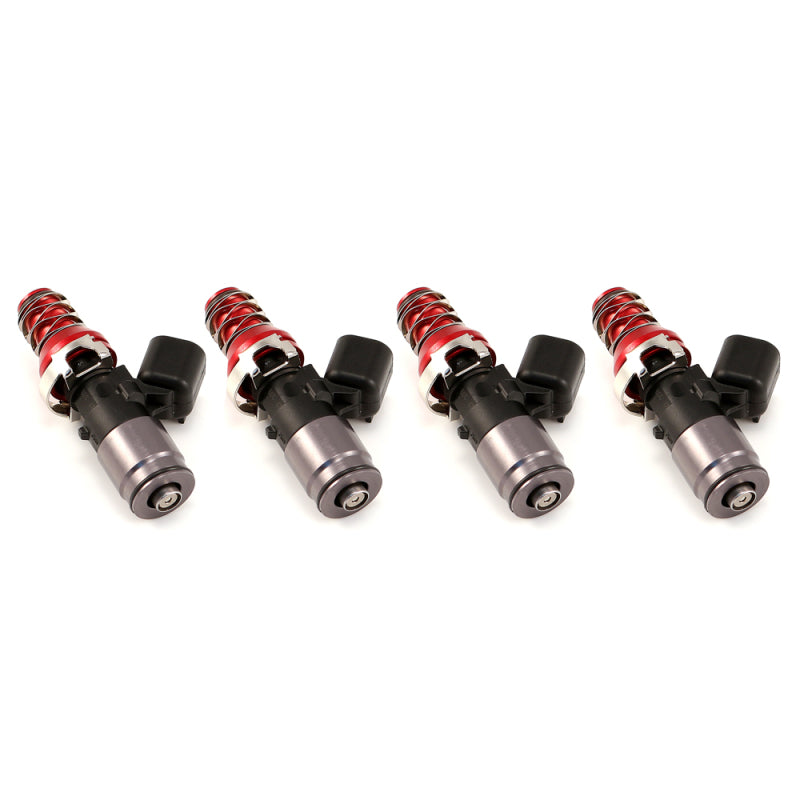

Injector Dynamics ID1300-XDS Fuel Injectors for Subaru WRX 2002-2014 & STI 2007-2020 (Set of 4)

SKU: IDX1300.48.11.WRX.4
$1,039.50
Product details

The Injector Dynamics ID1300-XDS is a high-flow injector developed in partnership with Bosch Motorsport and designed around alternative fuels. This set of four, manufacturer part number 1300.48.11.WRX.4, is the top-feed port-fuel-injection (PFI) configuration Injector Dynamics lists for the 2002–2014 Subaru WRX and 2007–2020 STI. It includes 11 mm red top adapters and WRX-16B bottom adapters. “Direct fit” refers to the listed mechanical rail and adapter configuration; ECU calibration is still required.

Specifications

  • Nominal flow rate: 1335 cc/min at 3.0 bar (43.5 psi), rated with iso-octane at 52°C (125°F)
  • Maximum differential fuel pressure: 7.0 bar (101.5 psi)
  • Body length: 48 mm
  • Top: 11 mm red top adapters included
  • Bottom: WRX-16B bottom adapters included
  • Injection architecture: top-feed port fuel injection (PFI)
  • Electrical: high impedance; USCAR connector; new mating connector supplied by Injector Dynamics
  • Fuel compatibility per Injector Dynamics: all known fuels, including ethanol blends such as E85

Fitment

Listed by Injector Dynamics under part number 1300.48.11.WRX.4 for Subaru WRX (2002–2014), STI (2007–2020), and Legacy GT / Forester XT (2007–2011). Verify compatibility using manufacturer part number 1300.48.11.WRX.4 before ordering.

Quantity

Sold as a set of four (4) injectors.

Installation & Calibration

Professional installation and an application-appropriate ECU calibration using Injector Dynamics characterization data are required.

Check applicable federal, state, and local emissions regulations before installing this part on a street-driven vehicle.
