Home » Injector Dynamics ID1300-XDS Auxiliary Port Injectors for BMW S58 (Set of 6)
Photo - Primary
8 in stock

Important emissions notice This product is not identified as CARB exempt. Verify legality for your specific vehicle and location before purchasing or installing. Parts that bypass, defeat, or render emissions controls inoperative must not be used on pollution-controlled vehicles. A “competition use only” label does not by itself make a prohibited defeat device legal under federal law. California street applications generally require a valid CARB Executive Order for the specific part and vehicle.
Injector Dynamics

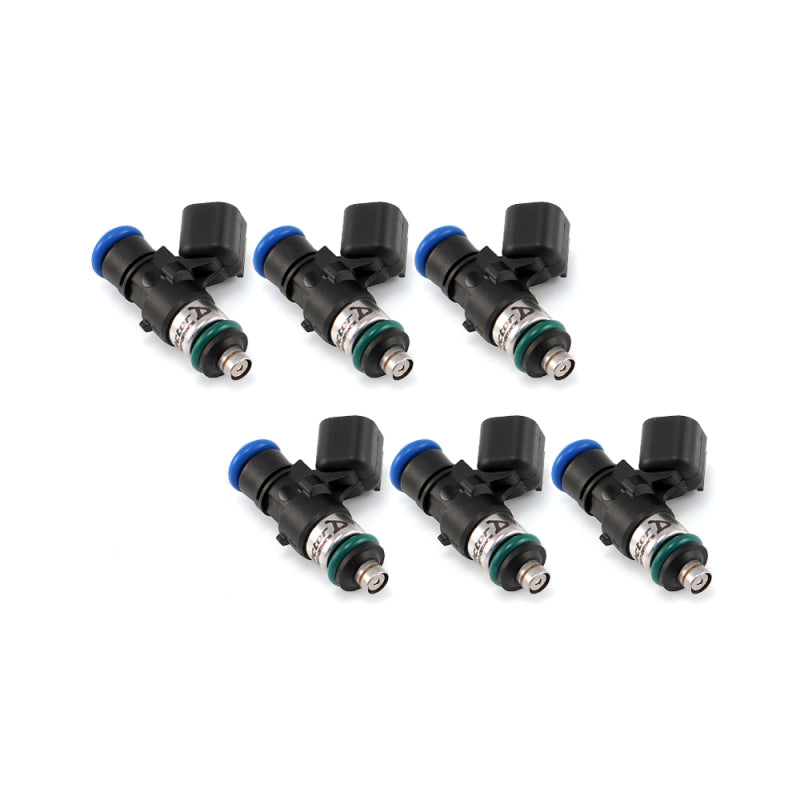

Injector Dynamics ID1300-XDS Auxiliary Port Injectors for BMW S58 (Set of 6)

SKU: IDX1300.34.14.14.6
$1,545.39
Product details

This Injector Dynamics ID1300-XDS set of six, manufacturer part number 1300.34.14.14.6, is for auxiliary port fuel injection (PFI) on BMW S58 engines equipped with a compatible aftermarket port-injection manifold and rail. The factory S58 fuel system is gasoline direct injection (GDI) and has no factory port rail. These injectors supplement the factory GDI system; they do not replace the factory direct injectors.

Injectors only: This listing includes six injectors. The aftermarket manifold/rail, fuel plumbing, wiring, ECU or auxiliary-injection controller, and calibration are not included.

Specifications

  • Nominal flow rate: 1335 cc/min at 3.0 bar (43.5 psi), rated with iso-octane at 52°C (125°F)
  • Maximum differential fuel pressure: 7.0 bar (101.5 psi)
  • Body length: 34 mm
  • Upper O-ring: 14 mm (no top adapter)
  • Lower O-ring: 14 mm
  • Electrical: high impedance; USCAR connector; new mating connector supplied by Injector Dynamics
  • Fuel compatibility per Injector Dynamics: all known fuels, including ethanol blends such as E85

Fitment

Injector Dynamics lists part number 1300.34.14.14.6 for BMW S58 applications but does not name compatible manifold or rail brands. Before ordering, verify that your auxiliary port-injection hardware requires a 34 mm injector with 14 mm upper and lower O-rings and a USCAR connector. Confirm ECU/controller and injector-driver compatibility with your tuner or system manufacturer.

Quantity

Sold as a set of six (6) injectors.

Installation & Calibration

Professional installation and an application-appropriate auxiliary-port-injection calibration using Injector Dynamics characterization data are required.

Check applicable federal, state, and local emissions regulations before installing this part on a street-driven vehicle.
