Important emissions notice This product is not identified as CARB exempt. Verify legality for your specific vehicle and location before purchasing or installing. Parts that bypass, defeat, or render emissions controls inoperative must not be used on pollution-controlled vehicles. A “competition use only” label does not by itself make a prohibited defeat device legal under federal law. California street applications generally require a valid CARB Executive Order for the specific part and vehicle.
Injector Dynamics

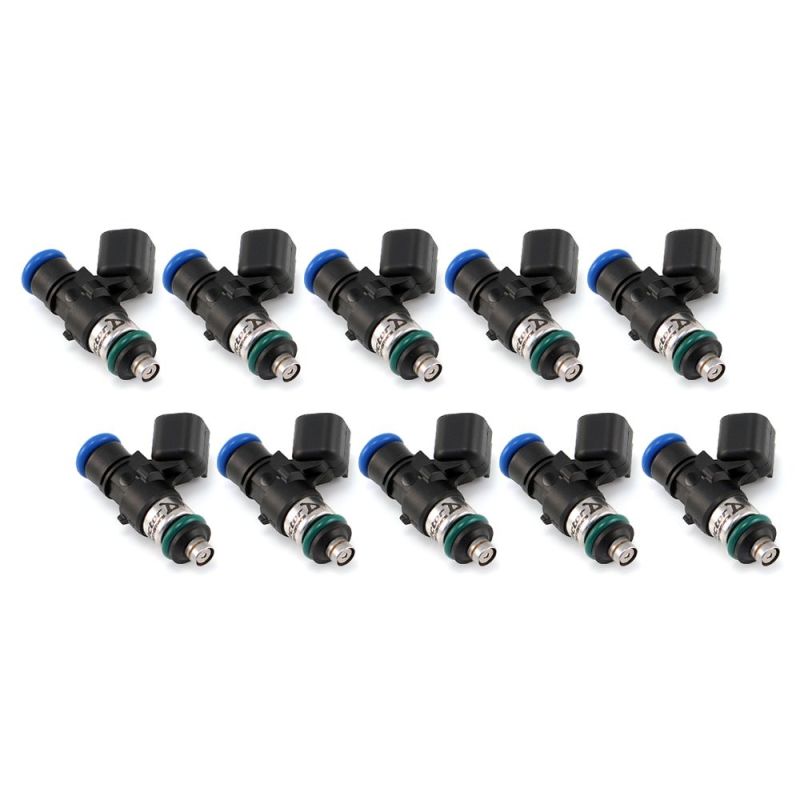

Injector Dynamics ID1300-XDS Port Injectors for Lamborghini Huracán & Audi R8 Type 4S (Set of 10)

SKU: IDX1300.34.14.14.10
$2,575.65
Product details

This Injector Dynamics ID1300-XDS set of ten, manufacturer part number 1300.34.14.14.10, is the configuration Injector Dynamics lists for the Lamborghini Huracán and Audi R8 “2015+.” For Audi applications, this listing is limited to the second-generation (Gen 2) Type 4S R8 V10. Audi model years vary by market, so verify the vehicle's chassis/generation and manufacturer part number rather than relying on model year alone.

Huracán and R8 Type 4S road cars use combined port/manifold and direct fuel injection. These injectors fit the port-injection circuit only. They do not replace or modify the factory direct injectors.

Not compatible with the first-generation Audi R8 Type 42, including Type 42 vehicles titled or registered as model year 2015.

Specifications

  • Nominal flow rate: 1335 cc/min at 3.0 bar (43.5 psi), rated with iso-octane at 52°C (125°F)
  • Maximum differential fuel pressure: 7.0 bar (101.5 psi)
  • Body length: 34 mm
  • Upper O-ring: 14 mm (no top adapter)
  • Lower O-ring: 14 mm
  • Injection architecture: port-injection circuit of a dual-injection fuel system
  • Electrical: high impedance; USCAR connector; new mating connector supplied by Injector Dynamics
  • Fuel compatibility per Injector Dynamics: all known fuels, including ethanol blends such as E85

Fitment

  • Lamborghini Huracán 5.2L V10 with factory combined multi-point and direct injection
  • Audi R8 Gen 2 / Type 4S 5.2L V10 with combined intake-manifold and direct injection
  • Excludes all first-generation Audi R8 Type 42 applications

Verify compatibility using manufacturer part number 1300.34.14.14.10 and the vehicle chassis/generation before ordering.

Quantity

Sold as a set of ten (10) injectors.

Installation & Calibration

Professional installation and an application-appropriate calibration using Injector Dynamics characterization data are required.

Check applicable federal, state, and local emissions regulations before installing this part on a street-driven vehicle.
