Injector Dynamics ID1050-XDS Fuel Injectors for Nissan GT-R (R35) (Set of 6)
The Injector Dynamics ID1050-XDS is a motorsport-grade injector developed with Bosch Motorsport. This set of six, manufacturer part number 1050.48.14.R35.6, is the configuration Injector Dynamics lists for the Nissan GT-R (R35) and its VR38DETT twin-turbo V6, supplied with 14 mm grey adapter tops and GT-R lower spacers in Injector Dynamics' application-specific R35 configuration.
Specifications
- Nominal flow rate: 1065 cc/min at 3.0 bar (43.5 psi), rated with gasoline at 52°C (125°F)
- Maximum differential fuel pressure: 10.0 bar (145.0 psi)
- Body length: 48 mm
- Top: 14 mm grey adapter top
- Bottom: GT-R lower spacer with 14 mm O-ring
- Injection architecture: port fuel injection (PFI)
- Electrical: high impedance; USCAR connector; new mating connector supplied by Injector Dynamics
- Fuel compatibility per Injector Dynamics: compatible with all known fuels
Fitment
Listed by Injector Dynamics under part number 1050.48.14.R35.6 for the Nissan GT-R (R35). Verify compatibility using manufacturer part number 1050.48.14.R35.6 before ordering.
Quantity

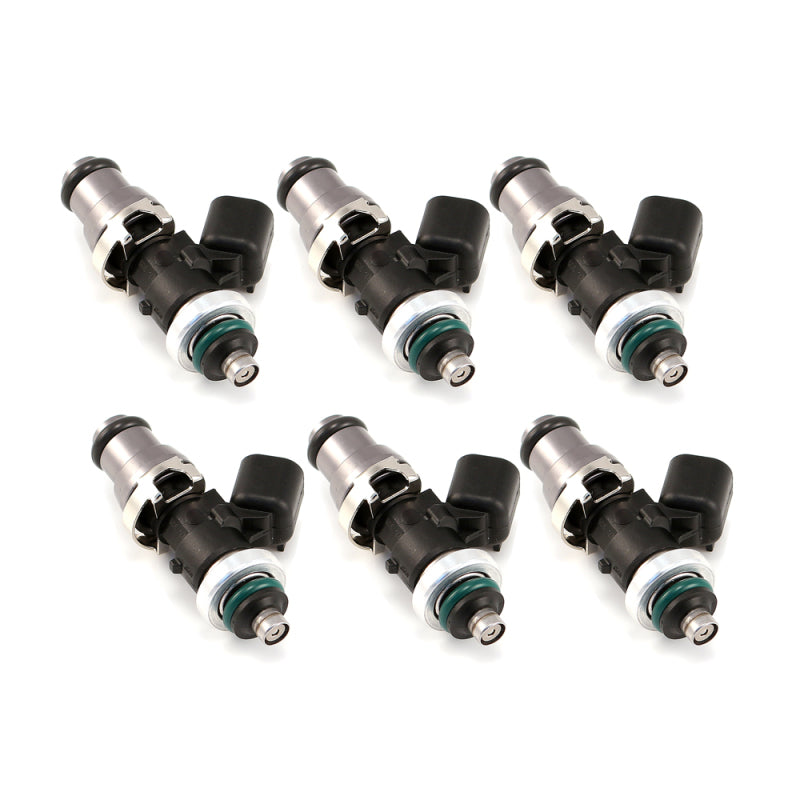

Sold as a set of six (6) injectors.
Installation & Calibration
Professional installation and an application-appropriate ECU calibration using Injector Dynamics characterization data are required.
Check applicable federal, state, and local emissions regulations before installing this part on a street-driven vehicle.
