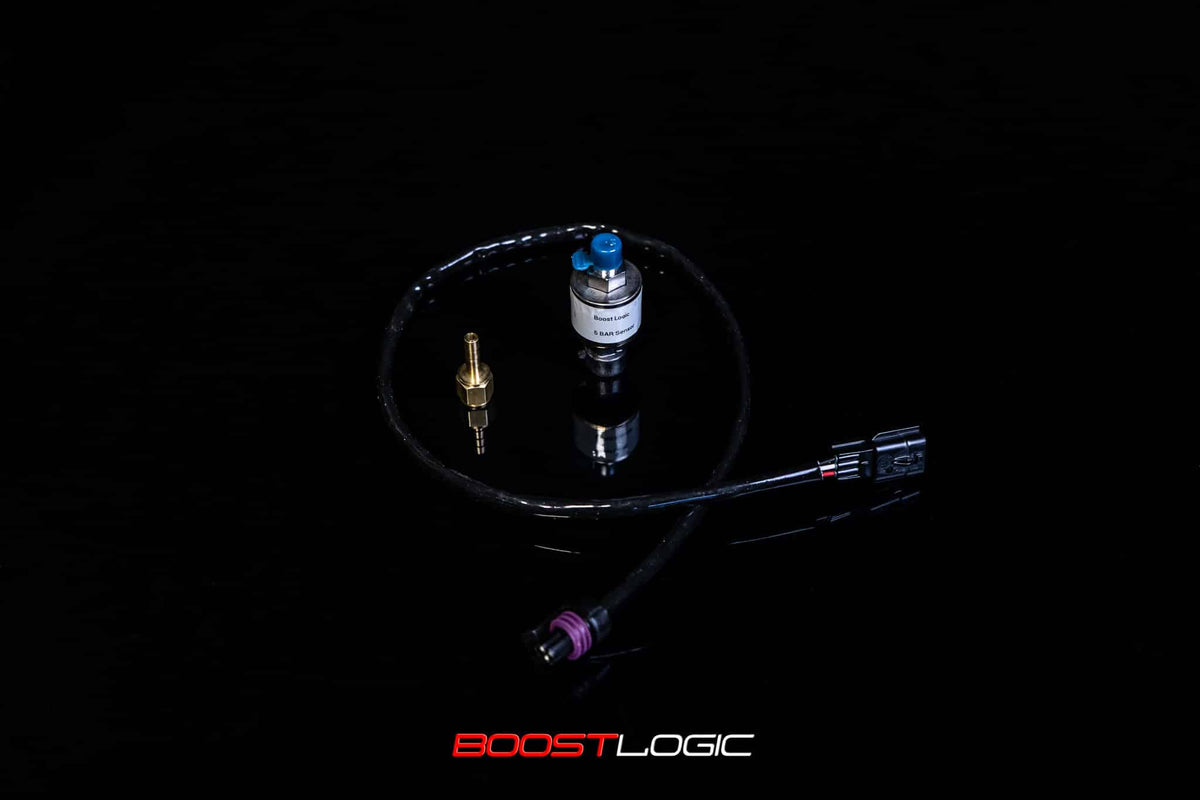

The Boost Logic 5 Bar Plug & Play MAP Sensor Kit allows the sensor to be installed into the intake manifold of the GT-R while keeping all stock components in place, so you can revert your car back to stock at any time.
Simplest and safest solution. We've developed a plug and play solution for those exceeding the limitations of the factory MAP sensor (3 Bar scale). Converting to a 5 Bar MAP sensor is quick and easy with our plug and play harness, and allows you to scale and tune for up to 58.8 psi of boost.
Installation options. The kit can be installed using the supplied barb fitting, or the adapter can be used to attach the MAP sensor to a 4AN line. The 1/8" NPT sensor threads mean the sensor can be adapted to a variety of manifold ports, vacuum blocks or bungs.
Key features
- Safely tune beyond factory boost levels
- Variety of installation options
- No cutting of your expensive OEM wiring harness
- Completely reversible
- Insulated heat tubing on wires for long, reliable life
Specifications
- Minimum Voltage: 0.5 Vdc
- Minimum Pressure: -14.7 psi / 0 kPa
- Maximum Voltage: 4.5 Vdc
- Maximum Pressure: 60.3 psi / 515.754 kPa
- Scale: Linear
- Transfer Function: PSI = (18.75 x Voltage) - 24.075

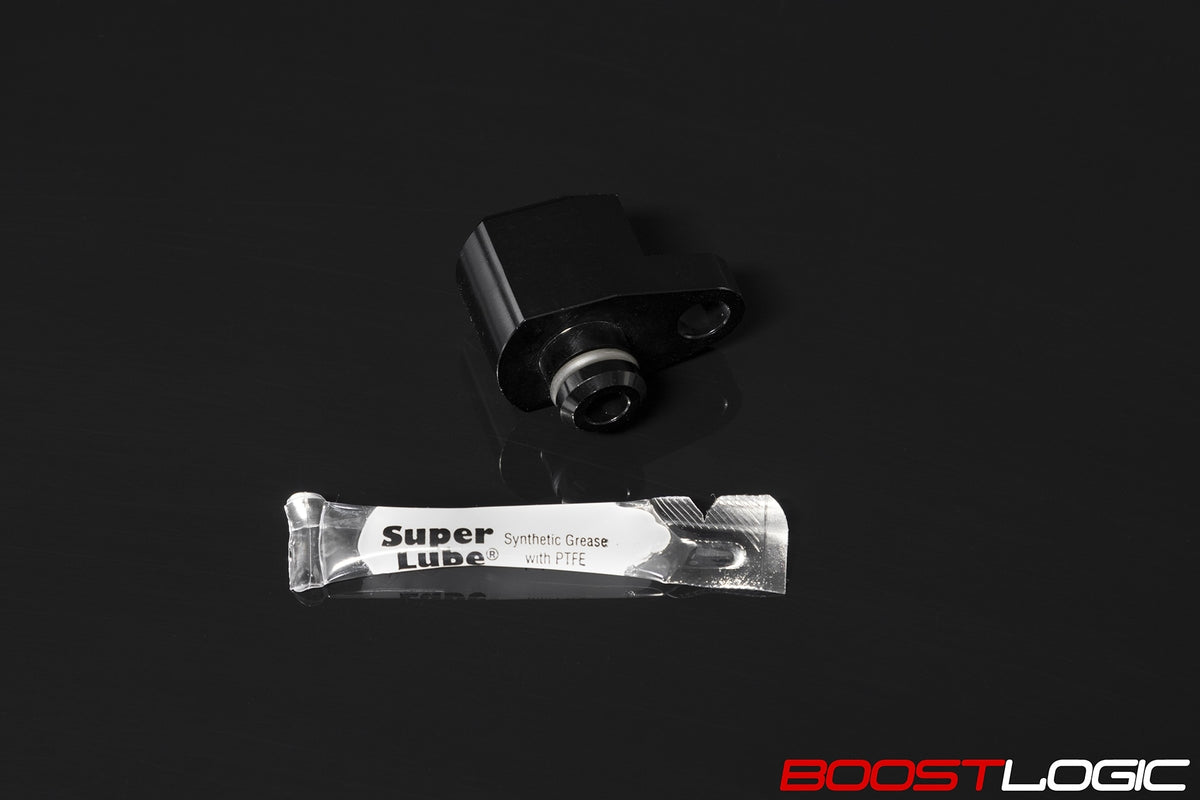

Optional extra: Boost Logic 5 Bar MAP Sensor Adapter for OEM Port. We recommend using this when adding 5 Bar MAP sensors to your upper intercooler piping.
NOTE: You must retune and rescale to properly and safely use this product.
Applications
- 2009 and newer Nissan R35 GT-R
